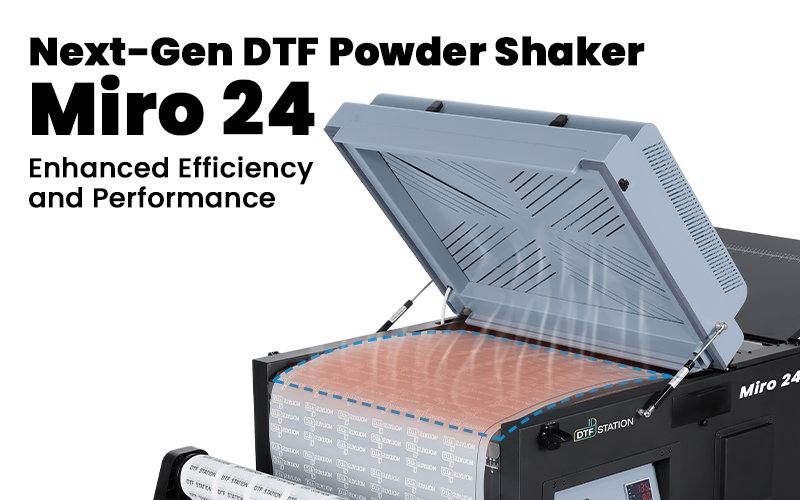

DTF Station’s Next-Gen DTF Powder Shaker Machine Miro 24: Enhanced Efficiency and Performance
We’re excited to introduce the Miro 24 DTF Powder Shaker Machine, a groundbreaking solution designed to elevate your printing efficiency and performance. After extensive design and testing, the Miro 24 is finally here, offering a perfect powder application solution for DTF setups ranging from 48cm to 60cm. Upgrade to the Miro 24 to experience 40% less power consumption, a built-in air purifier, and an eco-friendly workspace—all while saving time and space. Discover how this advanced powder shaker machine can transform your printing process today!
Table of Contents
- Ultra-Low Power Consumption
- A. Power Efficient as a Hair Dryer
- B. Patented Bottom Heating
- Create a Smoke-Free Environment
- Optimize Space Usage
- A. Compact Size
- B. Storage Cabinet Stand
- User-Friendly Design for Effortless Operation
- A. Curved Surface to Avoid Film Bundling
- B. Scale Marks to Ensure Film Easy Alignment
- Specifications of Miro 24 DTF Powder Shaker Machine
- Availability
Ultra-Low Power Consumption
A. Power Efficient as a Hair Dryer
Powder consumption is a significant concern for printing factories and commercial businesses, as it directly impacts both operational costs and environmental efficiency. The Miro 24 DTF Powder Shaker addresses this issue with advanced design features aimed at reducing powder usage and power consumption. It operates at 1.7KW and offers both 110V and 220V voltage options, making it versatile and easy to integrate into various setups. This design not only simplifies installation—eliminating the need for specialized electrical work—but also ensures minimal power consumption, comparable to that of a standard hair dryer.

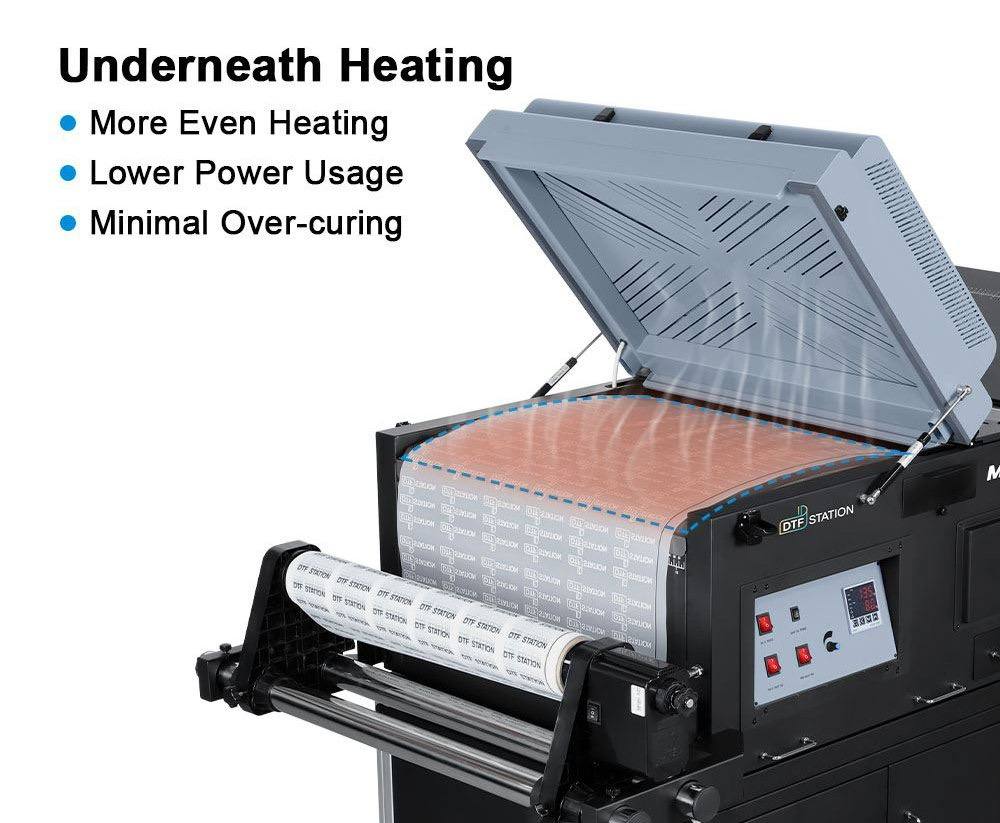

B. Patented Bottom Heating
Additionally, the Miro 24 features our patented bottom heating technology, which revolutionizes the curing process. This advanced method enables faster curing at lower temperatures, reducing energy consumption. Unlike traditional powder shakers that rely on heating bulbs, the Miro 24 uses a bottom heating coil to transfer heat directly to the surface. This direct contact results in a higher heat utilization rate, which significantly lowers power consumption.
Powder Shaker with Bottom Heating Furthermore, because the film is cured through direct contact with the heating surface, it requires a lower temperature and less curing time, enhancing efficiency. In contrast, traditional heating bulbs must first heat the air before curing the film with hot air, leading to less efficient heat distribution and increased powder use. The Miro 24’s heating coil ensures more stable and even heat distribution, providing a more effective and economical solution for businesses aiming to optimize powder usage while achieving superior printing results.
Create a Smoke-Free Environment
The smoke generated during the curing process is a common concern for users, even though there is no concrete evidence linking it to direct health risks. However, it’s always prudent to prioritize health and safety, which is why wearing masks is often recommended as a precautionary measure. To address this concern and minimize the potential risks associated with smoke exposure, the Miro 24 DTF Powder Shaker Machine incorporates a state-of-the-art, patented built-in smoke filtration system.

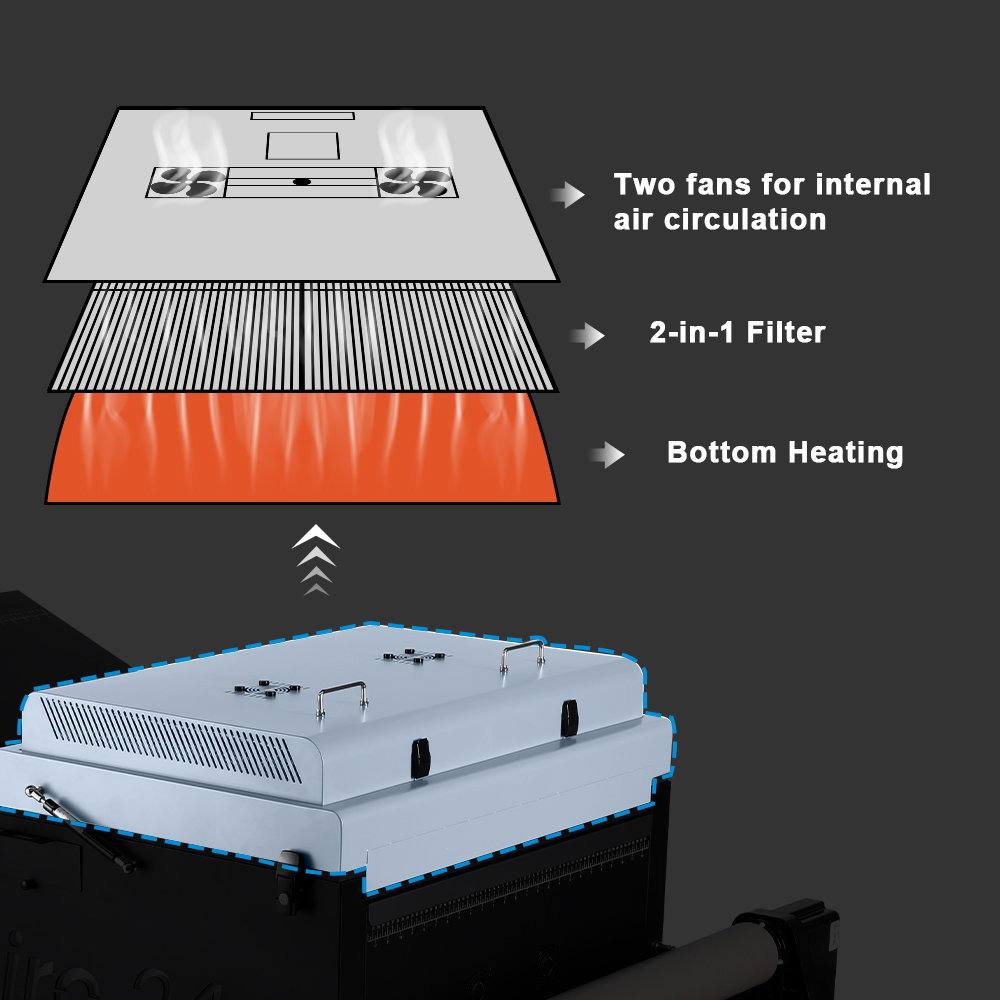

Miro 24 With Patented Fume Extraction System This advanced filtration system is designed to effectively capture and remove smoke particles from the air, creating a cleaner and safer working environment. By employing this technology, the Miro 24 significantly reduces the presence of smoke, ensuring that users can operate their machines with greater peace of mind. The system efficiently filters out harmful elements, allowing for a virtually smoke-free workspace and enhancing overall health and safety.

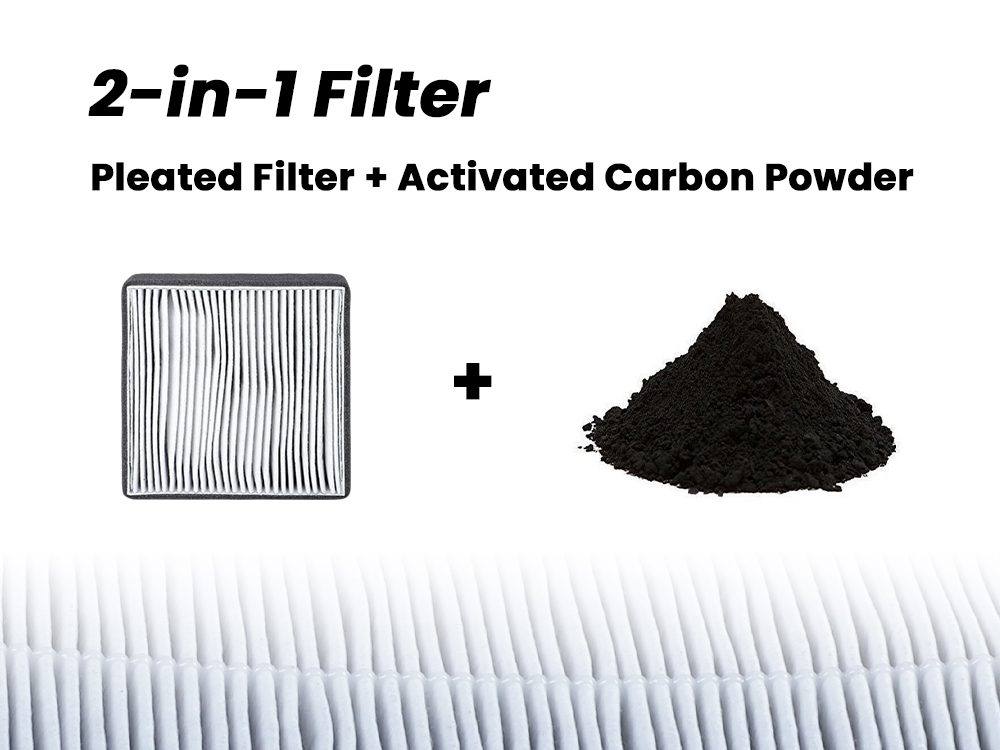

The Miro 24 DTF Powder Shaker Machine features a patented built-in fume extraction system that combines two advanced technologies, eliminating the need for an external air purifier. The system consists of a pleated filter combined with activated carbon powder. During the curing process, any smoke generated is drawn into the filtration system by an integrated fan. The pleated filter captures harmful fumes and particles, while the activated carbon powder further purifies the air, ensuring that only clean steam is left. After filtering, the remaining steam is expelled into the room by the fan. With this integrated fume extraction system, users can benefit from effective smoke management without the hassle of additional external equipment.
Optimize Space Usage
A. Compact Size
For locations where space is at a premium, a compact solution can significantly reduce costs and improve efficiency. Keeping this in mind, we designed the Miro 24 DTF Powder Shaker with space optimization as a priority. Measuring just 59.55” x 30.16” x 22.38” (151.2 x 76.6 x 56.9 cm), the shaker is compact enough to fit through standard-width doors without the need for special tools or modifications.

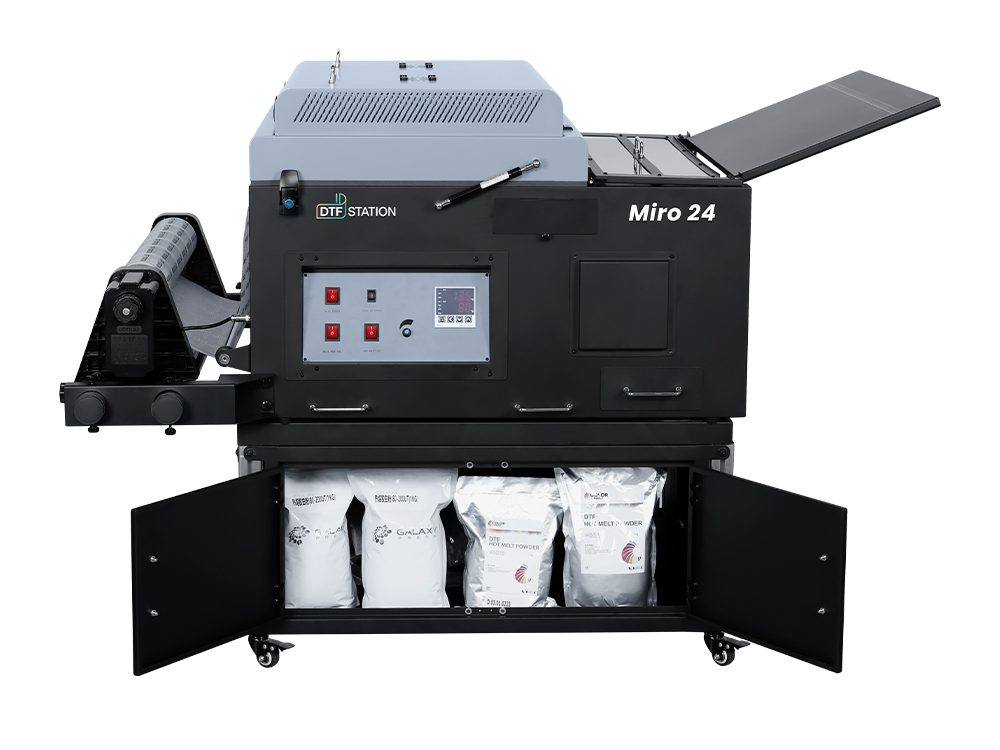

B. Storage Cabinet Stand
In addition to its compact size, the Miro 24 is accompanied by a specially designed stand cabinet. Unlike conventional tables or boxes, our stand cabinet not only supports the machine but also offers ample storage space for supplies, consumables, and everyday tools used in DTF printing. This thoughtful design helps users keep their workspace organized and maximizes the efficiency of their printing operations.
With Storage Stand Cabinet User-Friendly Design for Effortless Operation

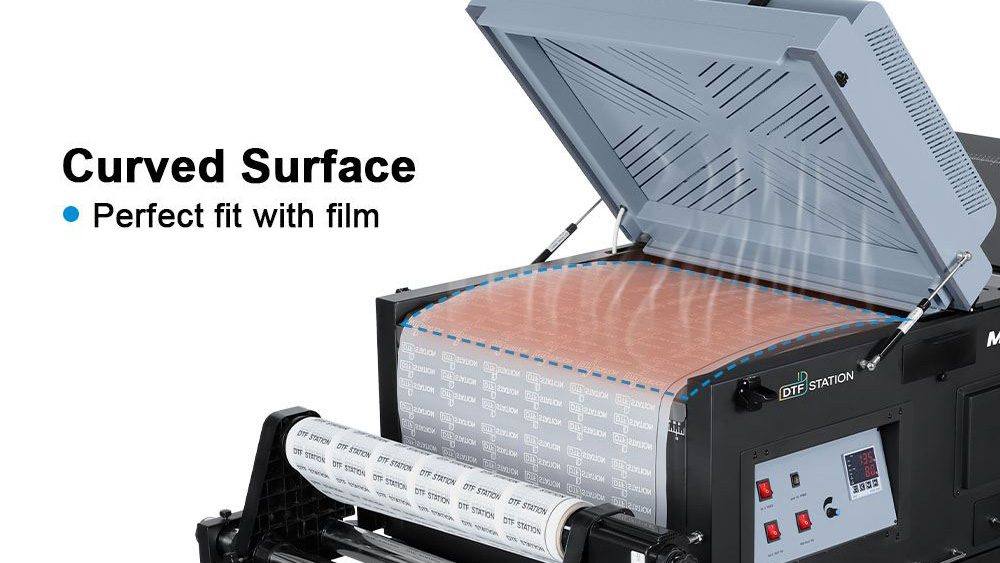

A. Curved Surface to Avoid Film Bundling
The Miro 24 boasts several unique features designed to enhance ease of use and convenience. One notable innovation is its curved heating surface, specifically engineered to address the common issue of film bundling during the curing process. Films are often stored in rolls, which can cause them to curve and potentially bundle up during printing and curing. This bundling can lead to uneven curing and suboptimal results.
The curved heating surface of the Miro 24 is designed to accommodate the natural curve of the film, ensuring that it lays flat and adheres evenly to the heating surface. This design allows for consistent and thorough heating across the entire film, resulting in optimal curing and high-quality prints. By effectively managing the film’s alignment and preventing bundling, the Miro 24 ensures superior performance and reliability in every print job.

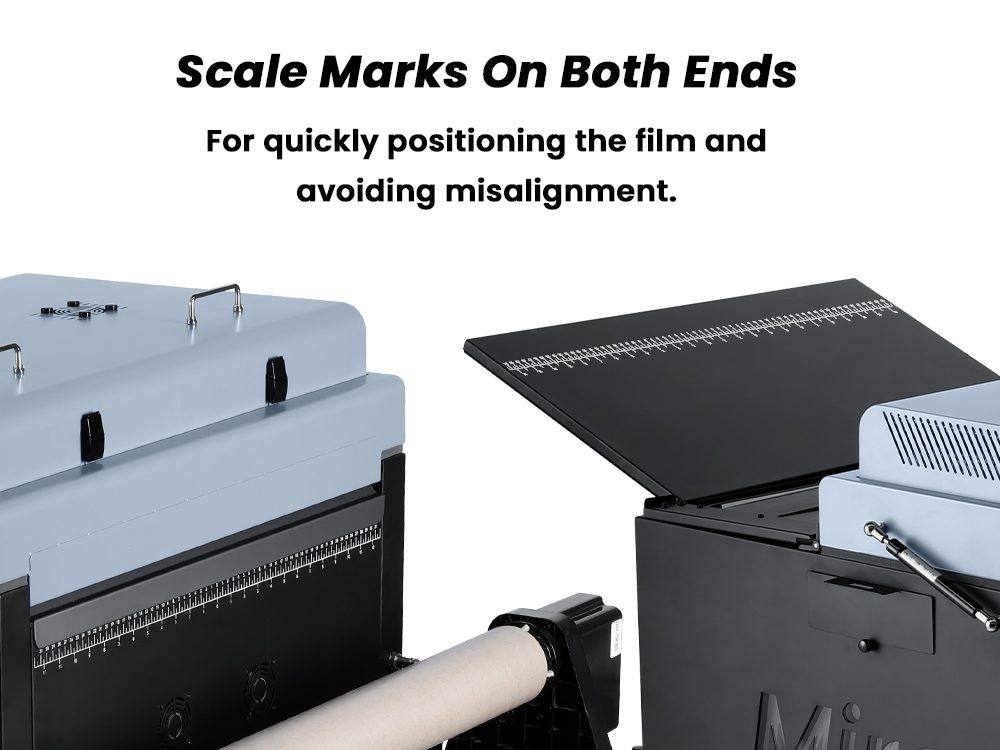

B. Scale Marks to Ensure Film Easy Alignment
Another standout feature of the Miro 24 is the inclusion of scale marks on both ends of the powder shaker, designed to ensure easy and precise film positioning and prevent misalignment. Misalignment is a common challenge with powder shakers, but the scale marks on the Miro 24 effectively prevent this issue.
Scale Marks on Both Ends To address this problem, the Miro 24 incorporates clear scale markings at both ends of the unit. When positioning the film, users simply align it so that the film width is equally distributed on both sides of the scale marks. For instance, with a 48 cm width film, the film should be centered with 24 cm on either side of the scale marks, both at the front and rear of the powder shaker. This alignment feature helps users maintain proper film positioning, ensuring smooth operation and consistent results without the risk of misalignment affecting the performance of the take-up reel.
Specifications of Miro 24 DTF Powder Shaker Machine
| Film Feeding Width | ≤ 24 in. (60 cm) |
| Powder Recycling | Every 1 hour manually( keep printing) |
| Power Requirements | 110V/1.7KW/15.5A 220V/1.7KW/7.7A |
| Weight(Machine & Work Table ) | Machine 254 lbs (115kg) Work Table 78 lbs (35kg) |
| Packaging Weight (Machine & Work Table) | 332lbs( 150kg) |
| Dimensions (Machine & Work Table) | 59.55”x 30.16”x 22.38 (151.2×76.6×56.9cm) |
| Packaging Dimensions (Machine & Work Table) | 37.01″ x 41.34″ x 39.37″ (94 x 105 x 100cm) |
| Warranty | One year warranty except for consumables |
| Suitable Users | Advanced DTF users Printing factories |
More information: our product pages
Availability
The Miro 24 DTF Powder Shaker Machine is now available for pre-order for dealers. If you are a dealer, please reach out to your sales representative for more information and to place your order. For users interested in purchasing the powder shaker, please visit the dealer locator on our website to find a local dealer near you. If there is no dealer in your country, kindly use the contact form provided below to reach out to us directly.
