Raised, not flat
Emboss UV DTF gives a transfer real depth and texture that a standard flat transfer cannot.
What it is for
Built for garments, not just rigid surfaces
Standard UV ink is formulated for hard, flat things and fails within a few bends on fabric or leather. This one is built to move.
Raised patches as a product you sell
A category most shops send out or turn down, brought in house and finished on the same press you already run.
AI-assisted 3D layering
Built-in AI turns flat artwork into layered, dimensional designs, so getting to a raised print is a step in the workflow rather than a separate skill to learn.
Fume extraction built in
Filtration is integrated, so the machine runs on an open shop floor without a separate extraction unit or ducting to install.
It looks after its own heads
White ink circulates and cleaning runs automatically, which is what keeps a UV machine consistent between runs instead of needing a routine before every job.
Gloss and embroidery-look stitch textures

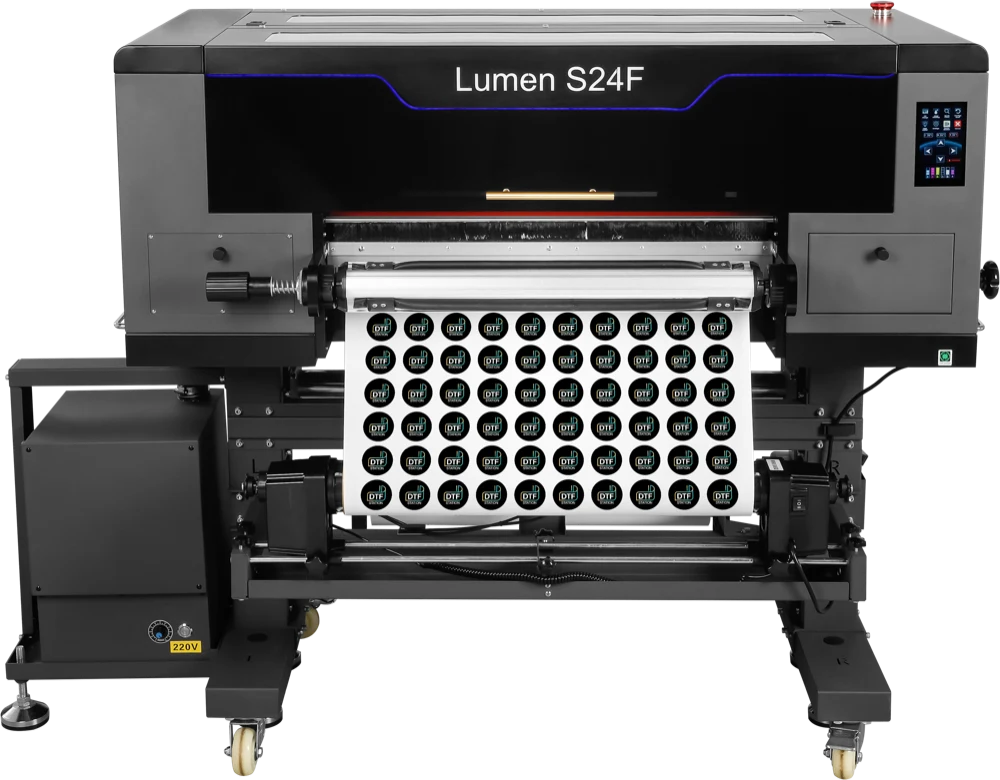

Run with Image Presto, the RIP software, the Lumen S24F produces a gloss varnish layer and a set of stitch textures that read as embroidery without a single thread.
Key specs
Print width24 in (60 cm)
Print speed5.4 ft²/hr (0.5 m²/h)
PrintheadsEpson i1600-U1HD + Epson i3200-U1HD
Ink configurationCMYK + White + Varnish
Resolution720 × 1200 dpi
Dimensions (W×D×H)61.7 × 35.6 × 46.4 in
Weight368 lb (167 kg)
User interfaceSingle integrated touchscreen
ConnectivityEthernet, USB, Wi-Fi available
RIP compatibilityneoStampa, DTF Station Pilot
Power supply110 V / 220 V
Rated current9 A / 4.5 A
Power consumption1,000 W
For pricing and availability, book a demo.
What comes with it
- Lifetime DTF Station tech support
- One-year limited warranty on non-consumable parts with on-site training
- neoStampa RIP and Image Presto included
- 2-in-1 print and laminate, no separate laminator
- Install and troubleshooting video library, plus a searchable knowledge base
