Prestige XL2/L2 Epson i3200 Printhead
Prestige XL2/L2 Epson i3200 Printhead
Couldn't load pickup availability
Features:
- PrecisionCore Technology - The manufacturing and thin film piezo element can realize a high precision and a high density (600 npi /2 rows of nozzles). Contributes to a compact, high speed, high quality, and high image quality.
- Support for grey scale - Epson's unique Variable Sized Droplet Technology (VSDT) delivers smooth gradation by freely controlling the droplet volume.
- High resolution - Ink ejection of up to 4 colors realized with high resolution (600 dpi/color).
- High durability - This Printhead has proven to have high durability and extended service life by Epson's industrial printers.
Specifications:
Product name | I3200-A1 | |
Ink type | Aqueous | |
Width x Depth x Height | 2.72" x 2.33" x 1.4" | |
Weight | 3 oz | |
Number of nozzle | 3200 | |
Nozzle pitch/nozzle row | 1/300 inch | |
Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
Max. number of colour inks | 4 colours | |
Effective print width | 1.33 inches (33.8 mm) | |
Droplet ejection performance |
Binary | 6 pl at 43.2 kHz |
3 levels grey scale | 6.3, 12.3 pl at 21.6 kHz | |
4 levels grey scale | 3.8, 6.1, 9.4 pl at 21.6 kHz | |
Viscosity range | 3-4 mPa·s | |
Compatible With:
![i3200 Printhead for Prestige XL2 DTF Direct to Film](http://dtfstation.com/cdn/shop/products/Artboard1_2x-100.jpg?v=1675886771&width=1445)
![i3200 Printhead for Prestige XL2 DTF Direct to Film quarter view](http://dtfstation.com/cdn/shop/products/oric-parts-image-30_400x_84db467e-2fd1-4c3b-8315-1f1e46107c73.webp?v=1675886771&width=1445)
![i3200 Printhead for Prestige XL2 DTF Direct to Film bottom view](http://dtfstation.com/cdn/shop/products/oric-parts-image-31_400x_8de80700-f784-4758-b893-e5283dcf0389.webp?v=1675886771&width=1445)
![i3200 Printhead for Prestige XL2 quarter view with port and connector](http://dtfstation.com/cdn/shop/products/3518.jpg?v=1675886771&width=1445)

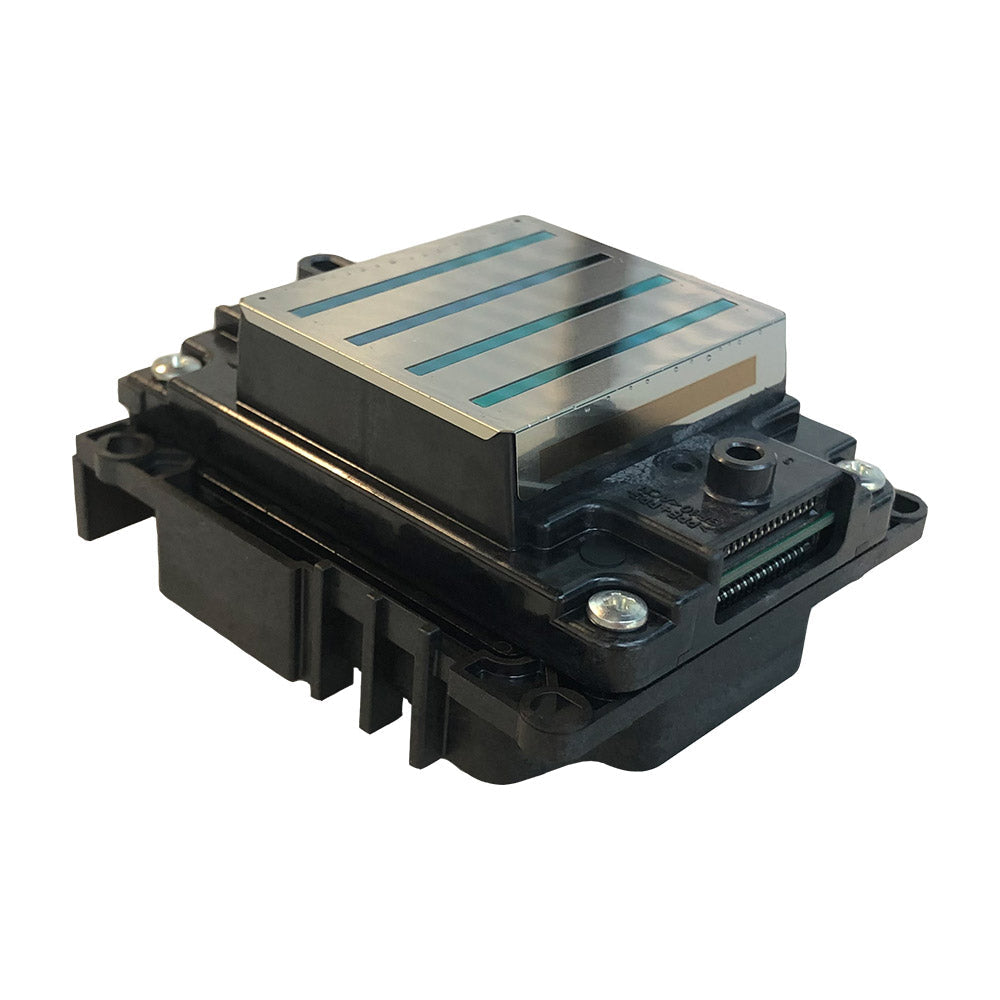

![i3200 Printhead for Prestige XL2 back view with slots](http://dtfstation.com/cdn/shop/products/408.jpg?v=1675886771&width=1445)
