DTF Station

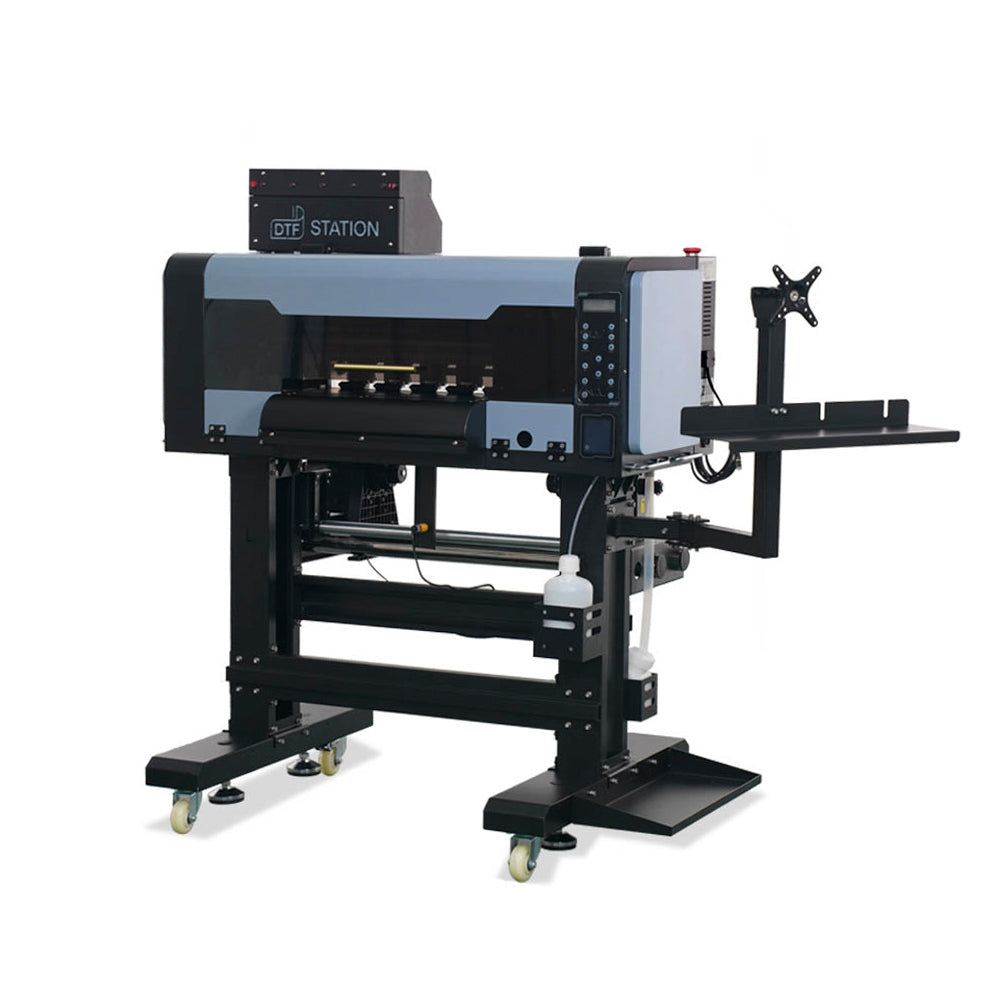

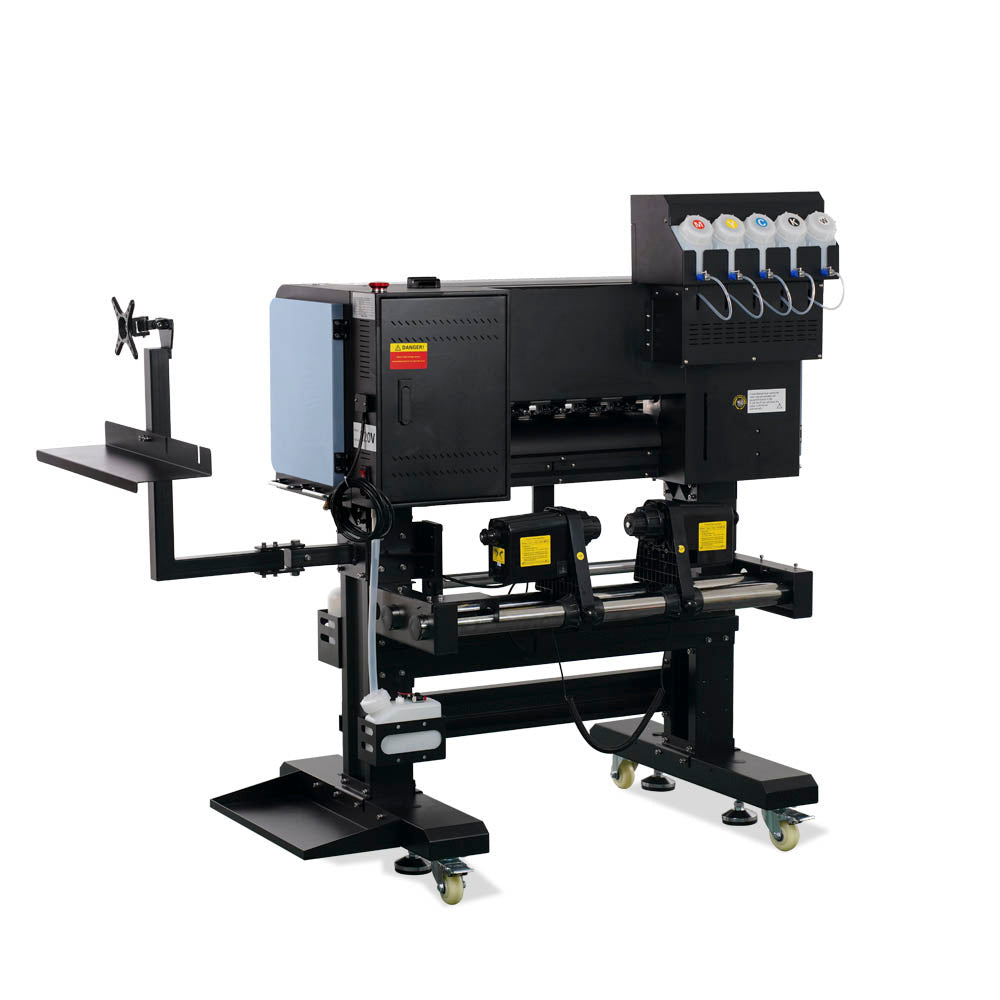

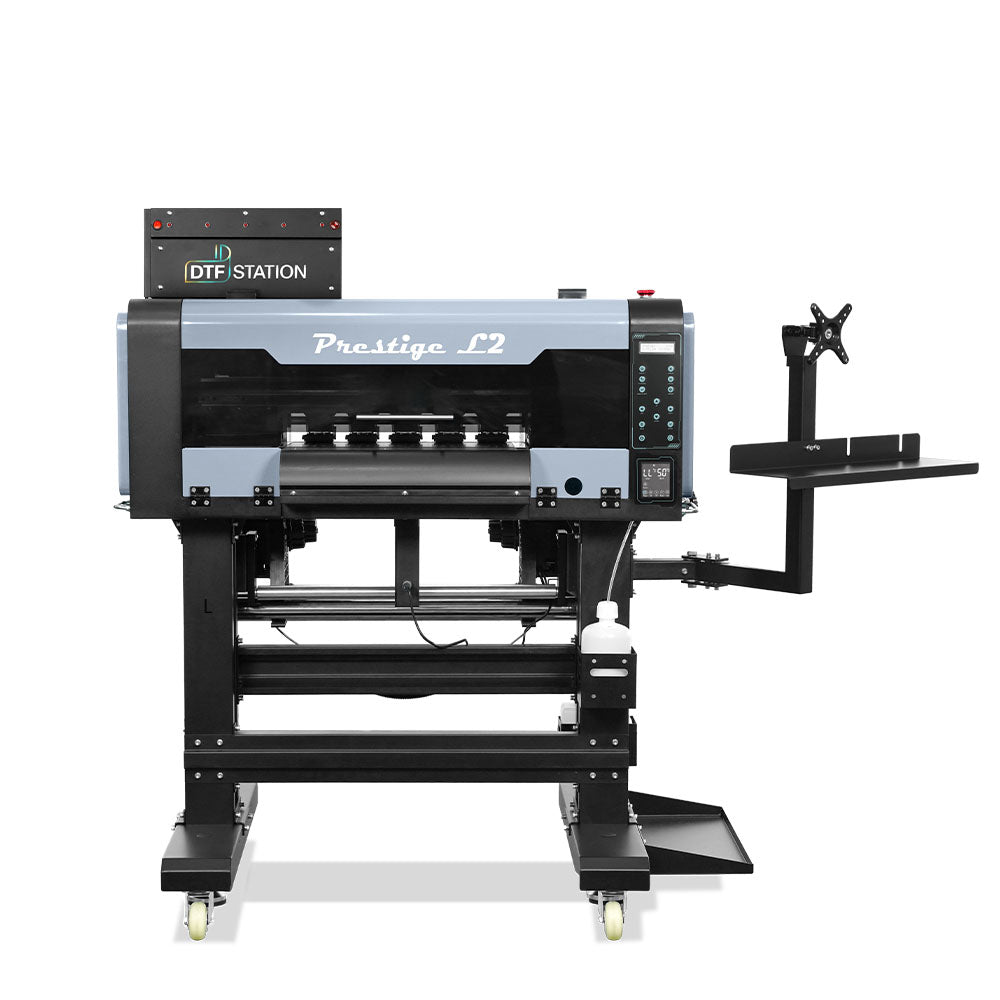

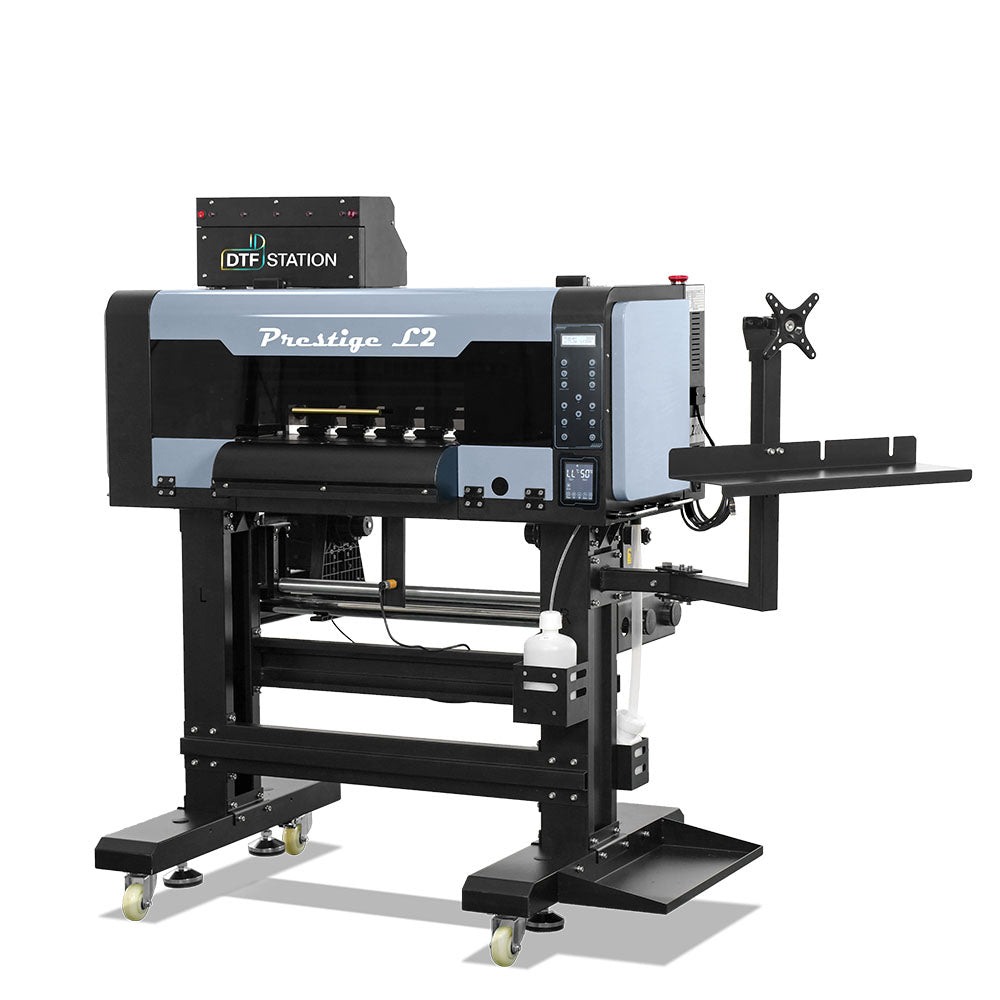

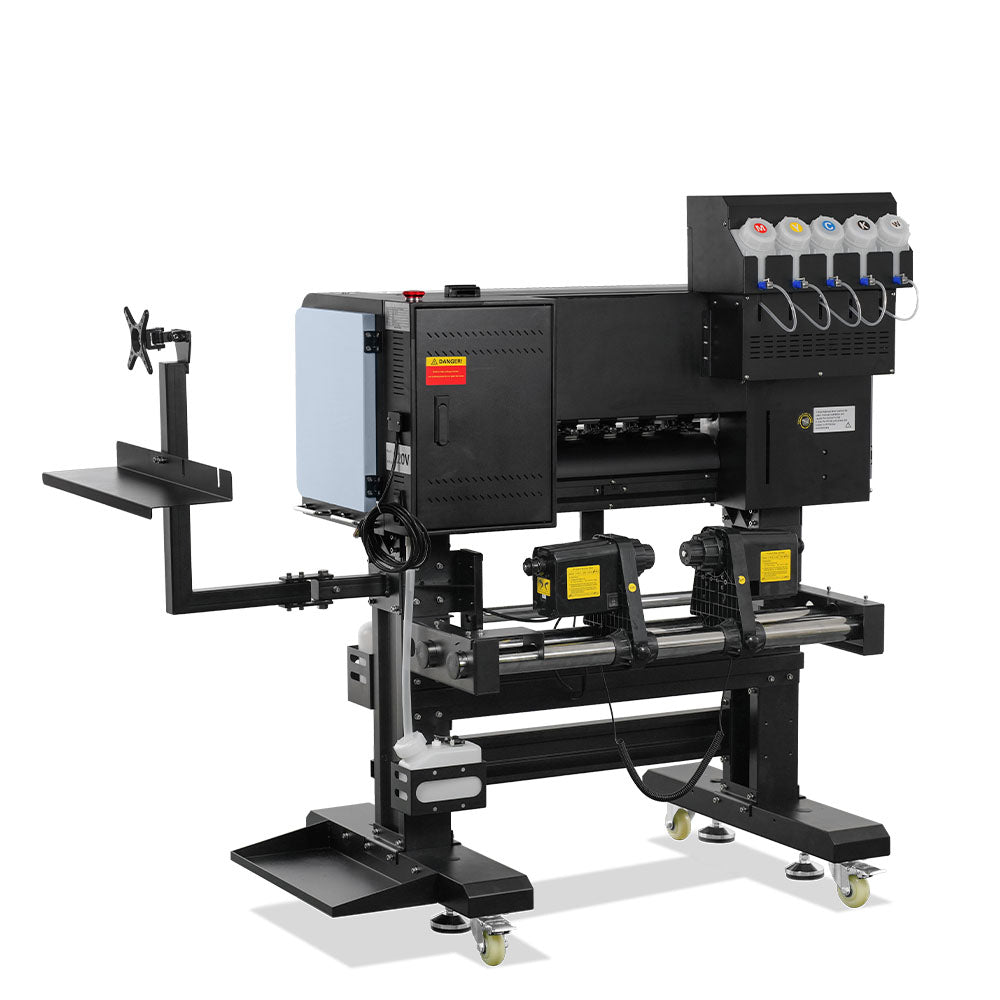

Prestige L2 DTF Roll Printer

Prestige L2 DTF Roll Printer

** Current Lead Time: 1-2 Weeks **

Prestige L2 Product Overview

Prestige L2 Maintenance Chart

Find out how you can get 0% financing for 1 year on this machine!

The Prestige L2, the newest offering from DTF Station's DTF printer line, is the perfect fit for mid-sized businesses and those looking to upgrade from smaller pipelines. With similar features as the Prestige XL2 in a smaller package, this 16" roll printer will boost your DTF printing speed with ease and efficiency.

What's included:

  • Lifetime Technical Support
  • Digital Factory Rip Software
  • Limited 1-year warranty on non-consumable parts and limited 6 month warranty on the Printhead up to 2 Printheads*
    • *The use of non-DTF Station ink and film will void any warranties offered for the Prestige L2 DTF Roll Printer

Requires On-Site Training:

  • On-Site Setup/Training + Driving Distance includes:
    • One Time Driving Distance within 2 hours (of Buena Park, CA, 90621)
    • 4~6 Training Hours Onsite
    • Lifetime Virtual Training
  • On-Site Setup/Training + Air Travel Domestic includes:
    • One Time Accommodations such as hotel, rental car, flight ticket
    • 4~8 Training Hours Onsite

Features:

  • Two i3200 print heads

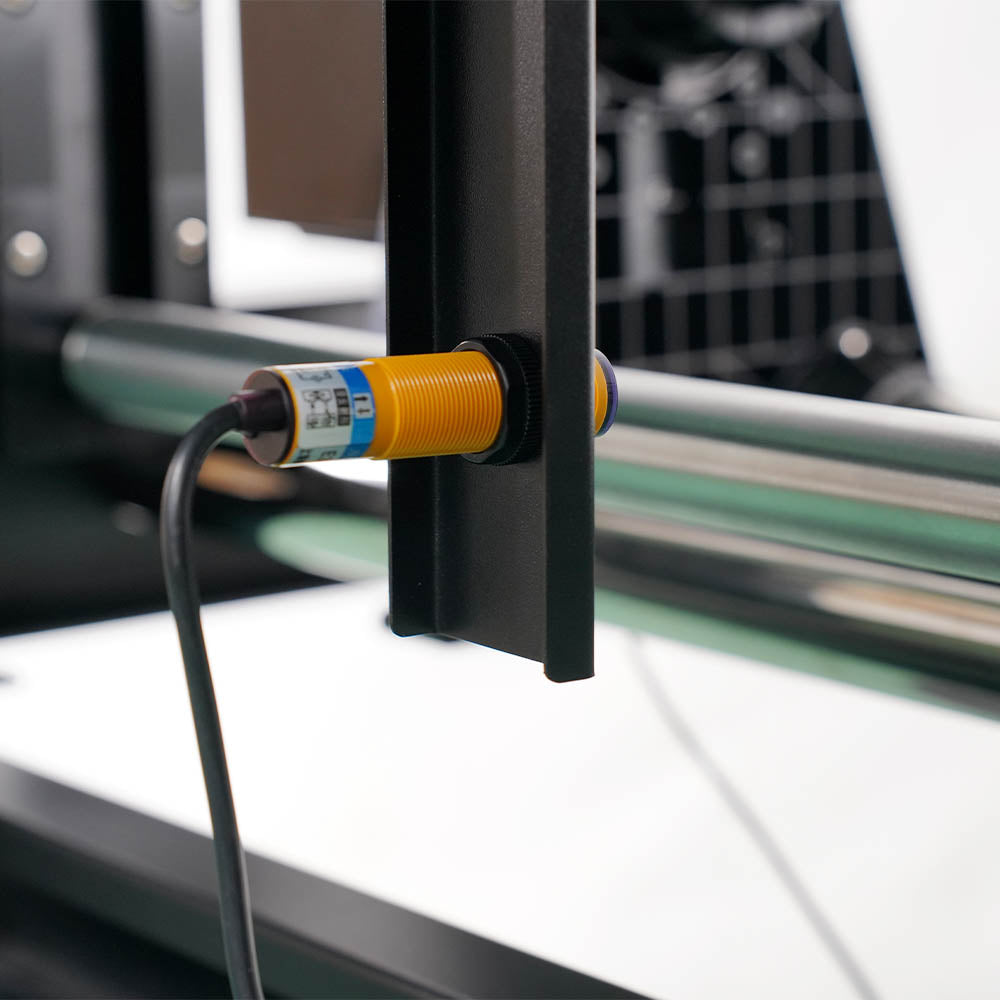

  • Head Strike Sensor: Prevents any head strikes
  • Maximum Print Width: 16.5" roll media
  • Fully automated system
  • Variety of adjustable settings including:
    • Belt Speed
    • Powder Shaking Power
    • Cooling
    • Suction
  • Head Strike Sensor inside shaker and take-up reel

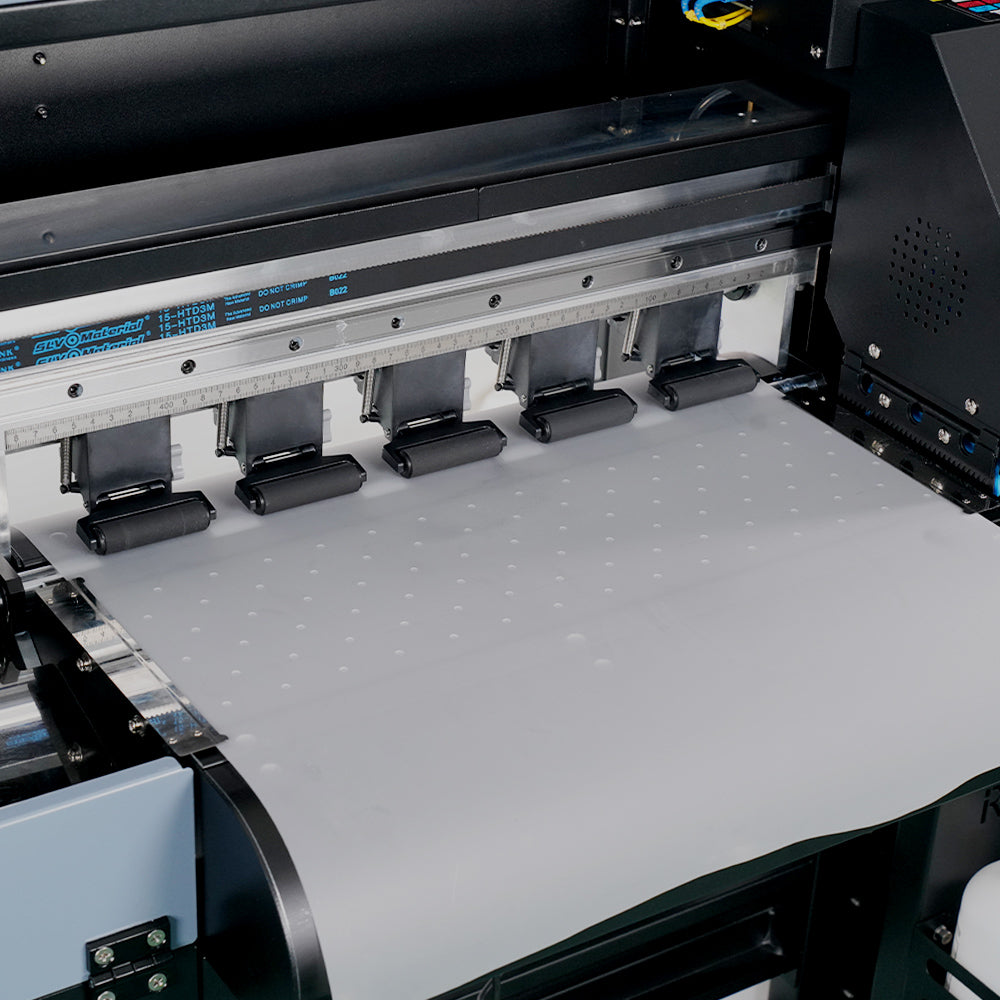

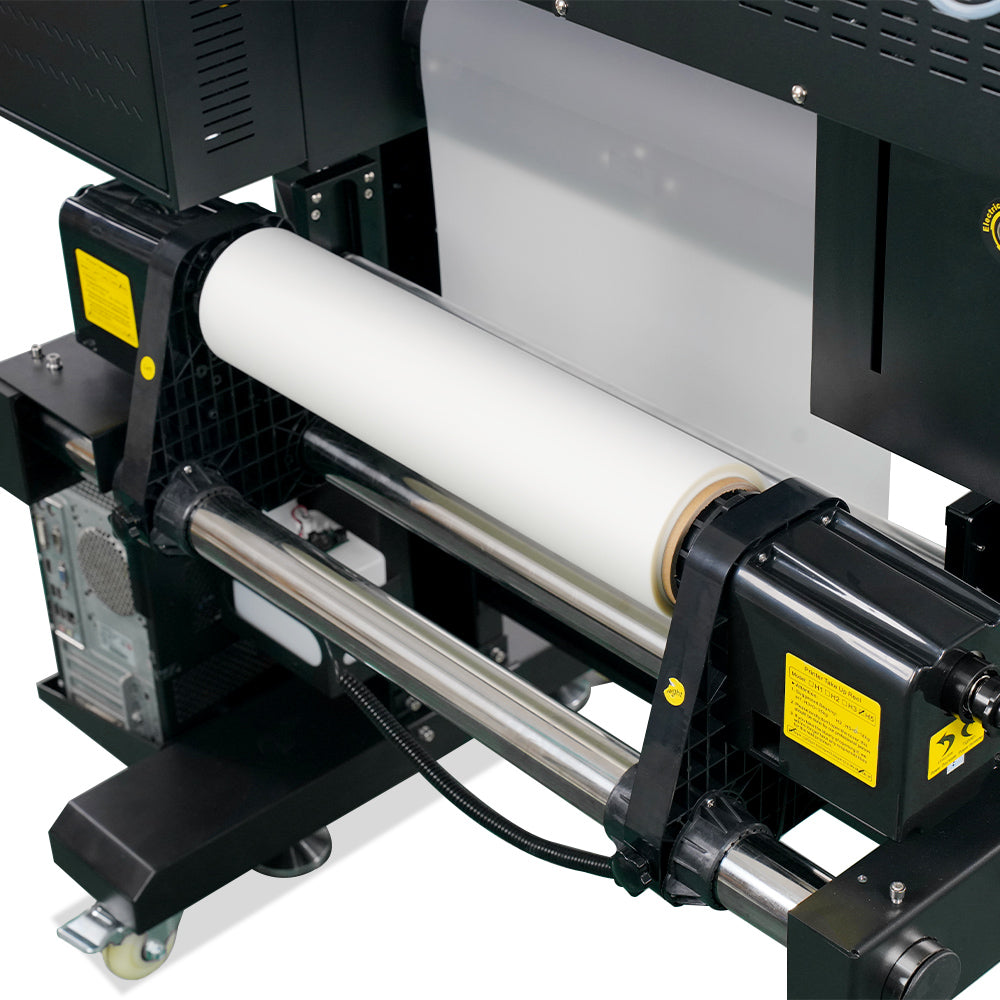

    • Pulls film as printer prints

Benefits:

  • Speed & Efficiency: 40-60 sq. ft/hour (720x1800, 6Pass/High Resolution)
    • 2 i3200 print heads make this printer one of the fastest performing DTF printers on the market
  • Compact Size/Small Footprint: perfect for mid-sized businesses or businesses looking to upgrade from smaller pipelines

Specifications:

Print Head  Dual Epson I3200 Printheads (CMYK - WWW)
Printing Accuracy 1440/2160/2880dpi
Printing Speed  4Pass: 7.5㎡/hour
6Pass: 5.5㎡/hour
8Pass: 4.5㎡/hour

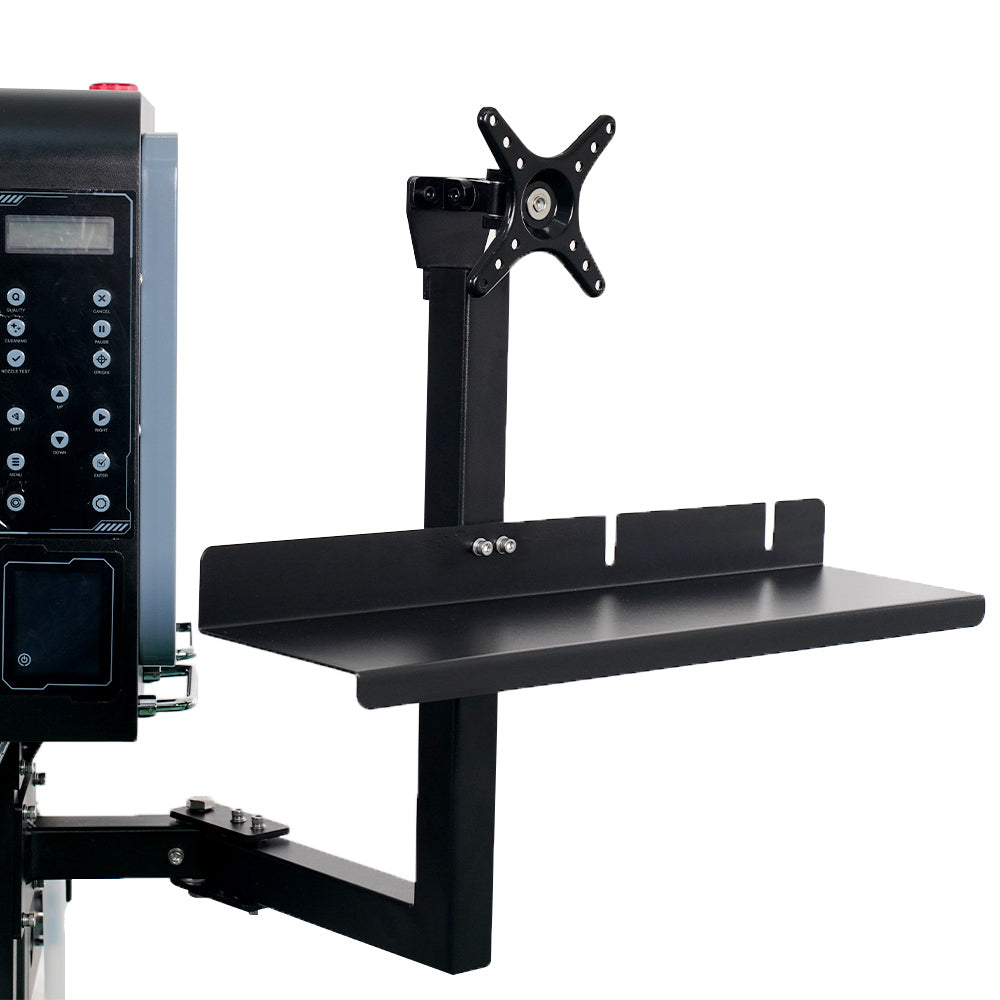

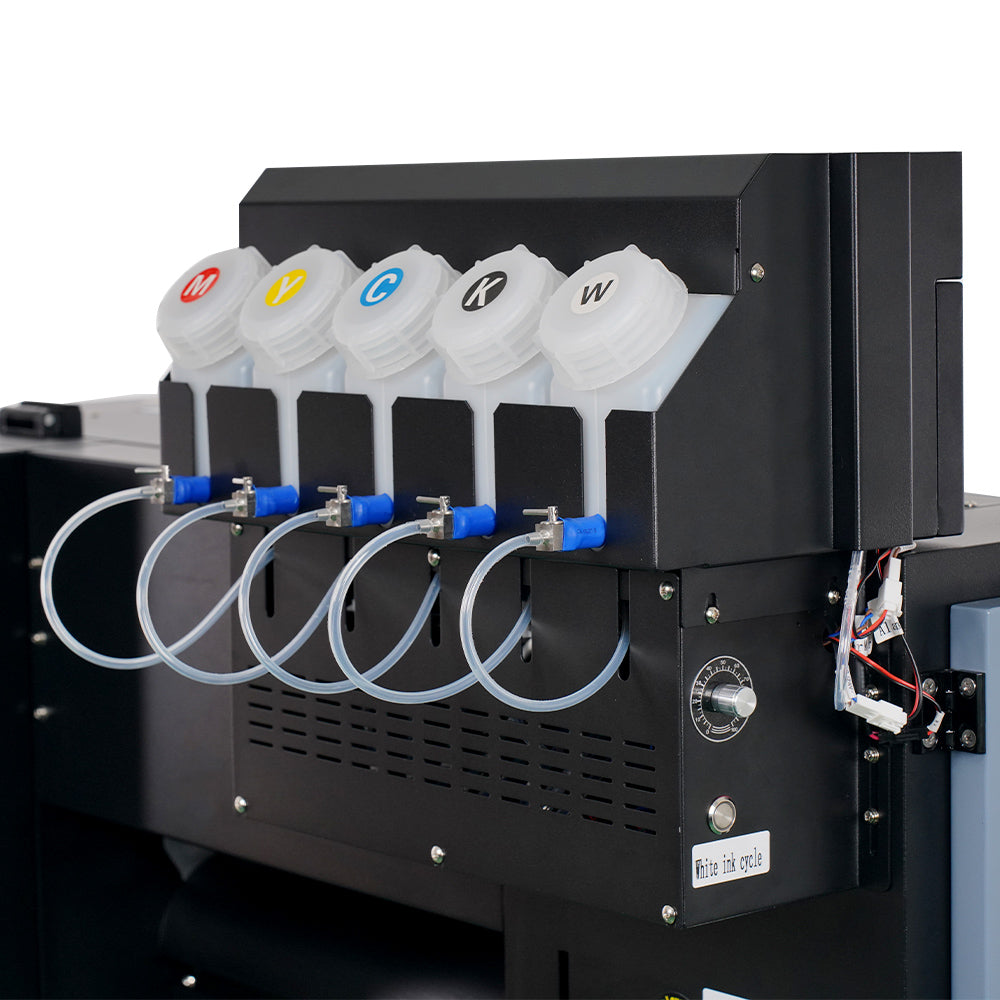

Printing Assit Front and rear arc plate heating; Platform suction; White ink circulation; Anti collision of nozzle; One-click auto cleaning; Integrated auto-lifting capping station; Built in computer and monitor combined bracket;
Maximum Print Width  16"
Printing Media PET Film
Printing Interface Gigabit network port
Operating System Windows 7, Windows 10
Printing Software

Digital Factory V11 Direct to Film (DTF) Edition - DTF Edition (23" Wide or Smaller)

Operation Environment Temperature:15℃-30℃ (60   °F-86°F), Humidity:35%RH-65%RH
Rated Voltage 110V
Rated Current 14A
Rated Power 1500W
Product Dimensions (LxWxH) 30.75" x 58" x 56.25"

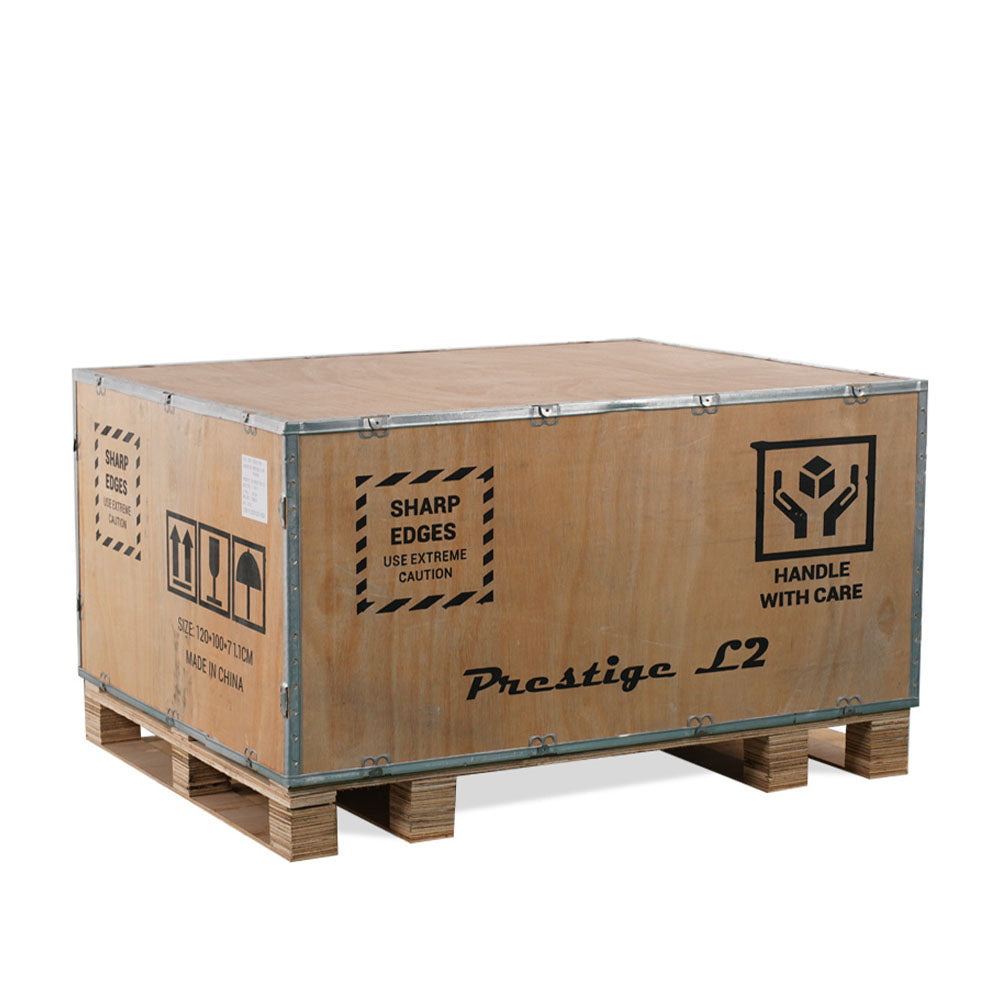

Packaging Dimensions (LxWxH)  40.4" x 70" x 58.25"
Machine Weight 306  lbs
Packaging Weight 350 lbs
