DTF Station

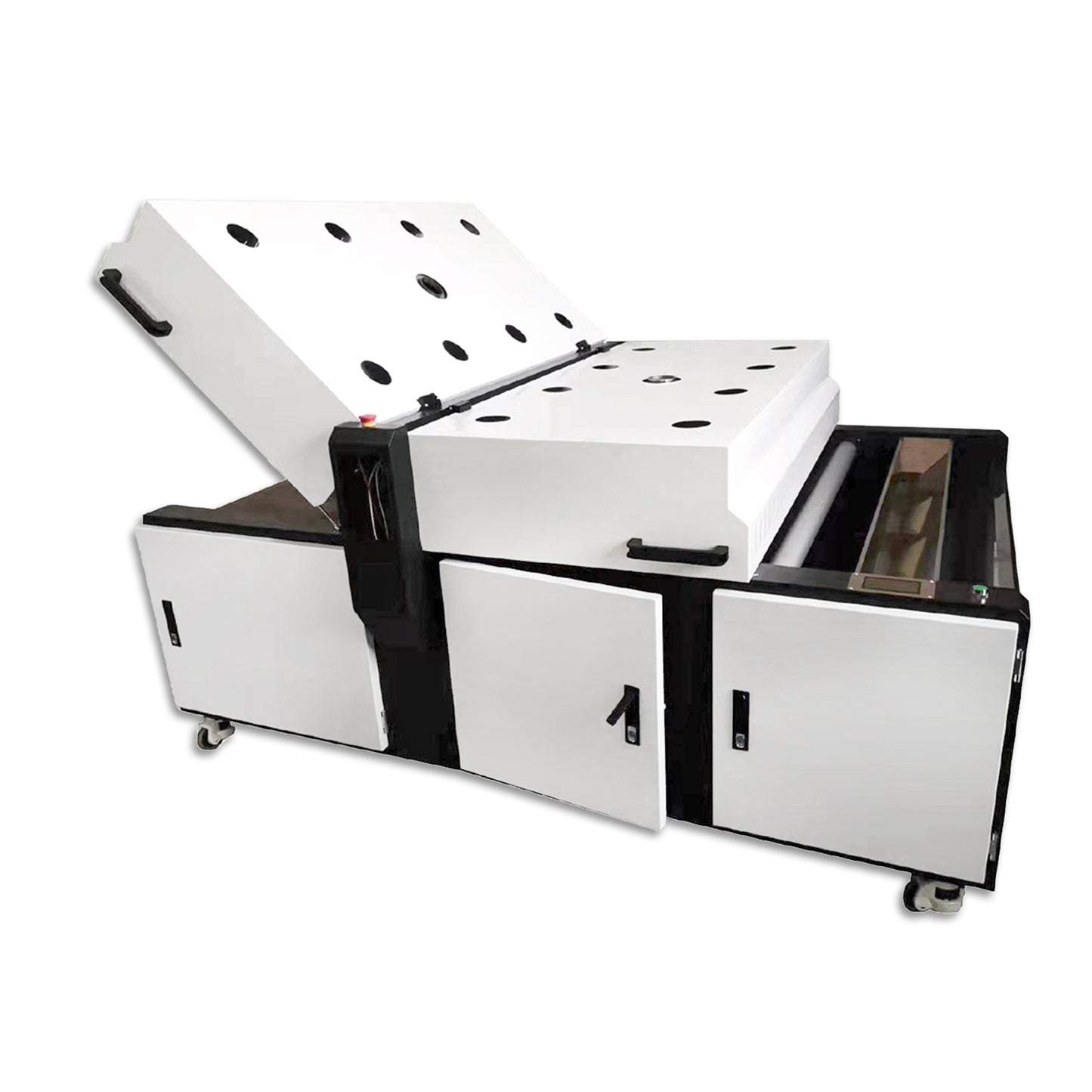

Seismo A51 DTF Powder Applicator and Dryer

Seismo A51 DTF Powder Applicator and Dryer

Seismo Shaker and Dryer Maintenance Chart

The Seismo A51 DTF Powder Applicator and Dryer unit can cure DTF rolls up to 51 inches wide and is compatible with all roll to roll Direct to Film printers. It has 220 volts, 28 amps, and hardwire (Please communicate with your electrician to install this)

Features:

  • Dual Length Heater: Longer heater/ dryer than the other dtf powder applicator and dryer combo to accommodate Faster DTF roll to roll printers.
  • Advanced Built-in HEPA 2 Layer Dual Air Filters filter out any fumes from dtf powder. low maintenance, easy to replace filters, and keep the environment clean and safe.
  • Advanced Film Detector: With the effective film sensor, it automatics turns off and on the power station, and heating elements which results in a lower power requirement of 220v 28 Amp

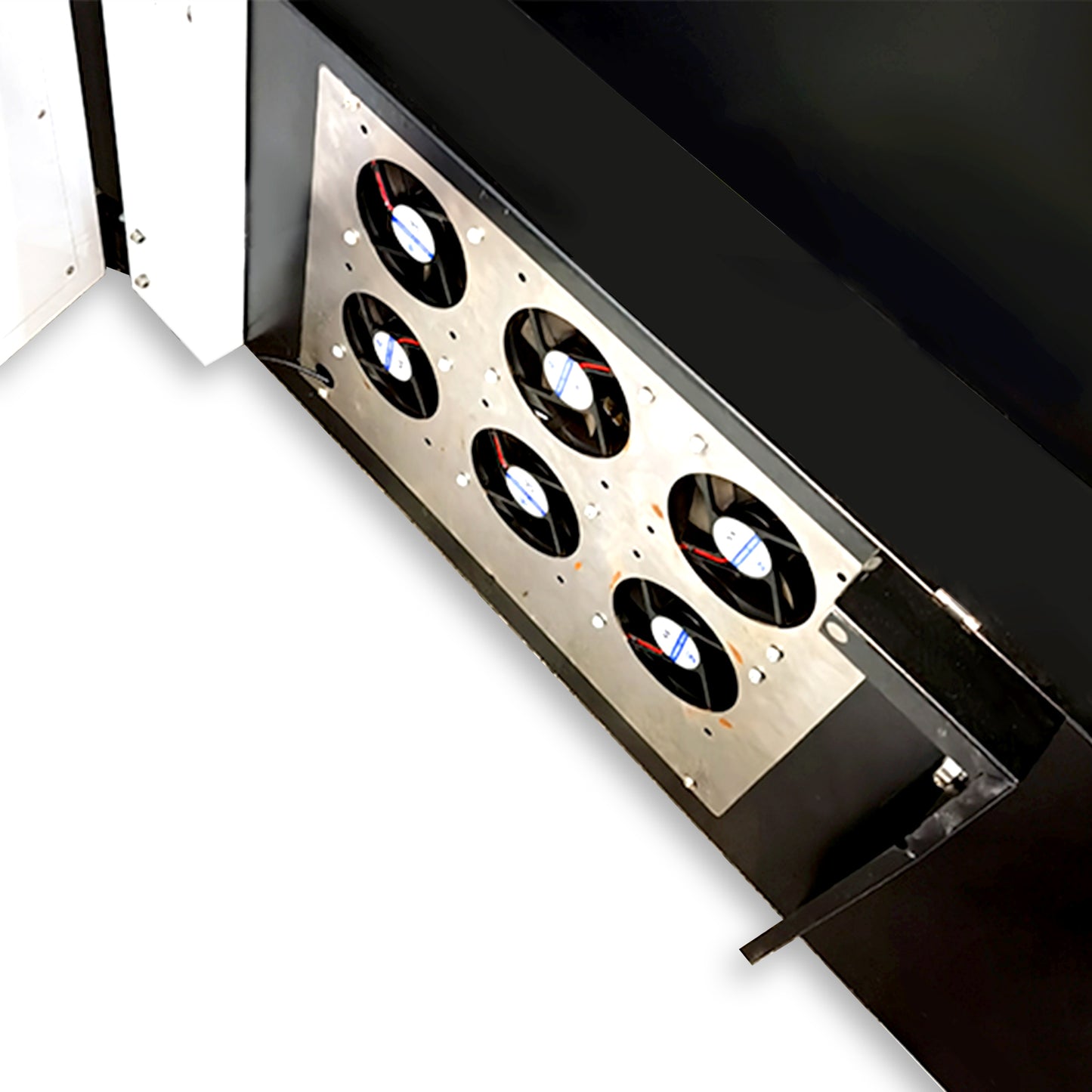

  • Advanced powder ventilation within the powder station: heating fans help reduce any powder build-up in the powdering station, less maintenance

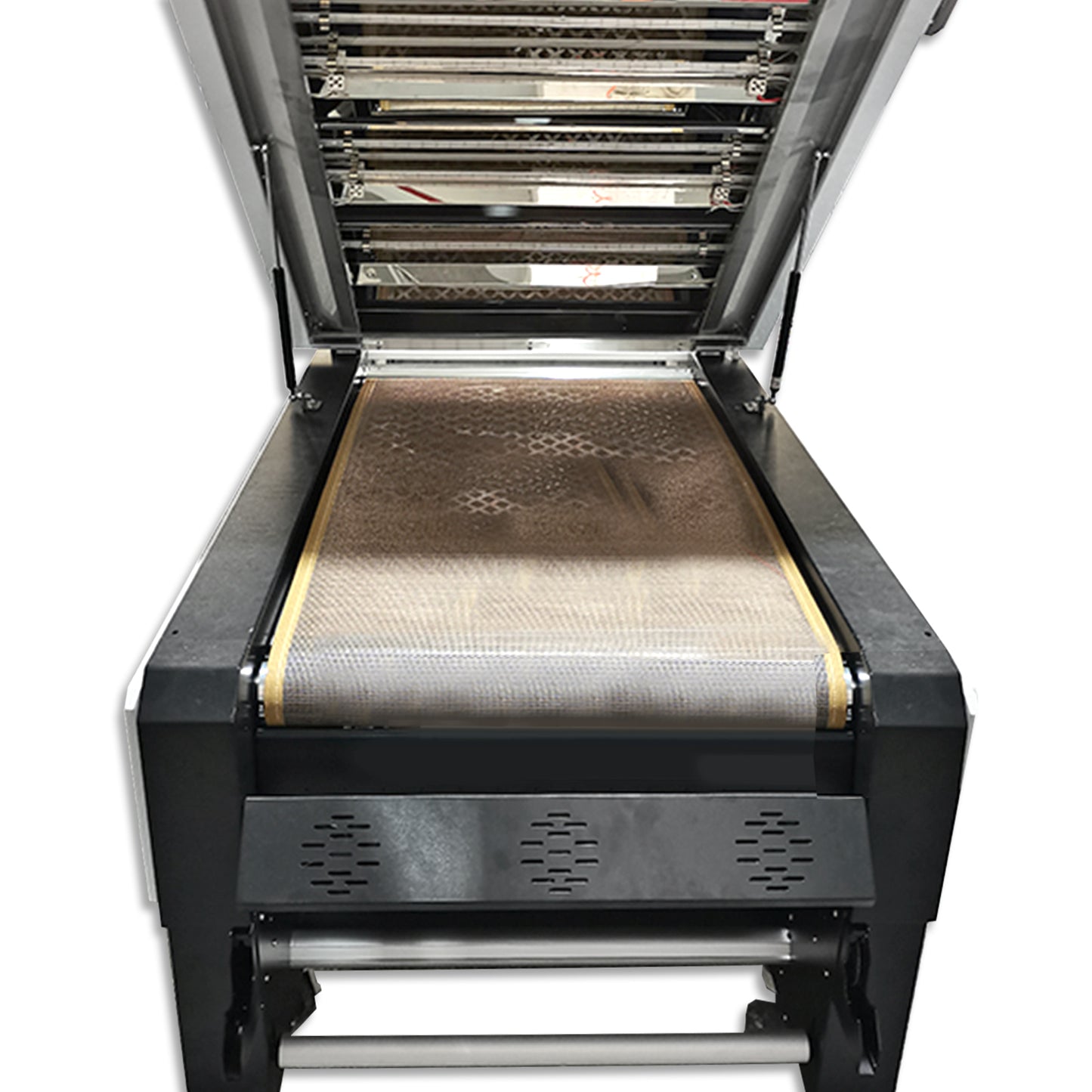

  • Air vacuum conveyor system: there’s an air vacuum on the front and end of the conveyor to keep the films from slipping/ moving, it aligns the dtf films to get even heating throughout the heater/dryer.
  • Advanced Take-Up System: Additional tension bar to roll up the finished dtf films better and compact as needed

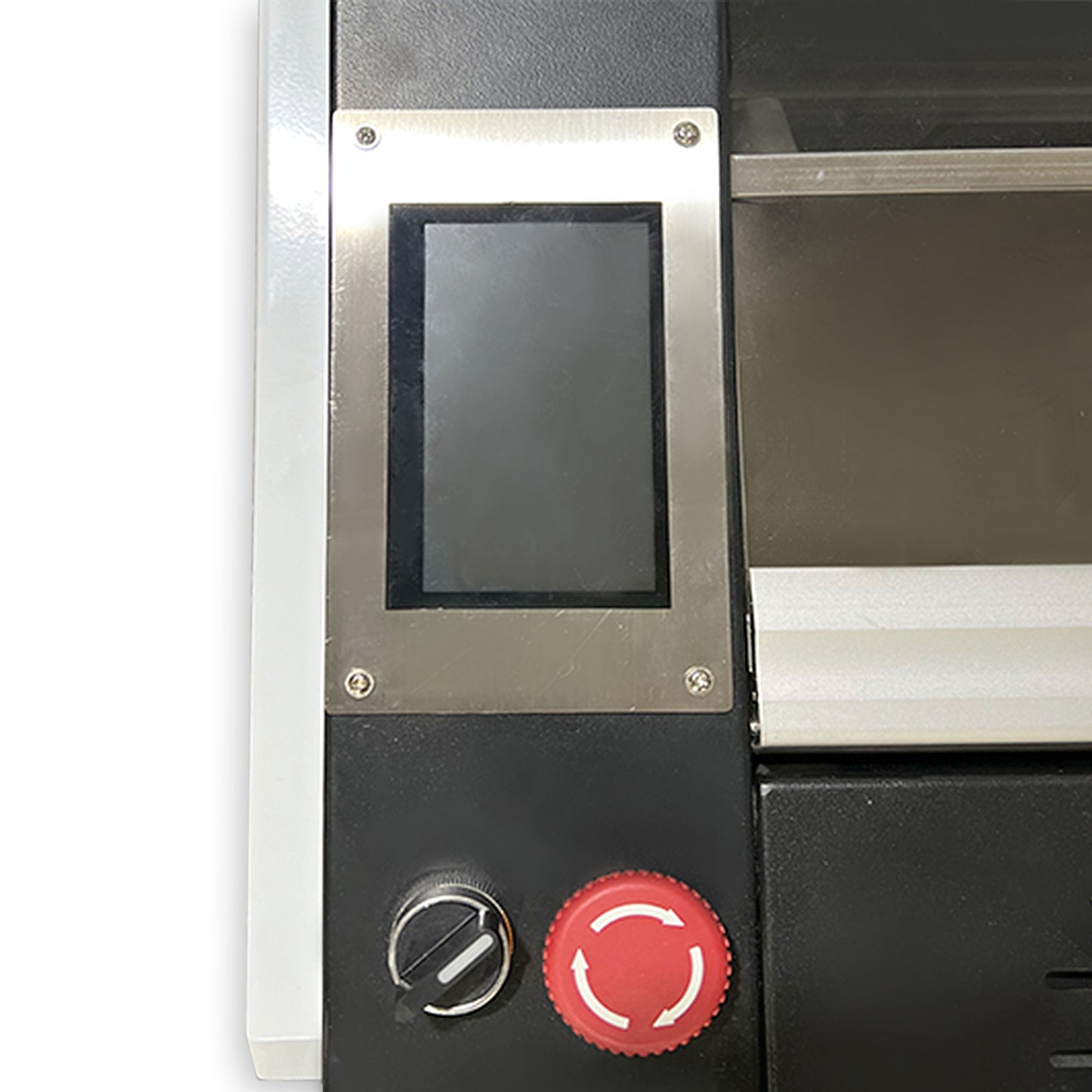

  • LCD Touch Screen: Easy to monitor and control

What's Included:

Specifications:

Power 6KW
Shaking Powder Motor vibration, automatic powder return-free
Heating Method

Double Ovens Back baking and front baking Fast constant temperature heating

Take-up and Feed Film Auto-sensing
Operation Mode Manual/Auto control
Mesh Belt Drum suction operation mesh belt
Automatic Deceleration of Film Cutting Prevent deformation of heating film
Method of Dusting Constant weight automatic sensing
Weight

881.849 lbs

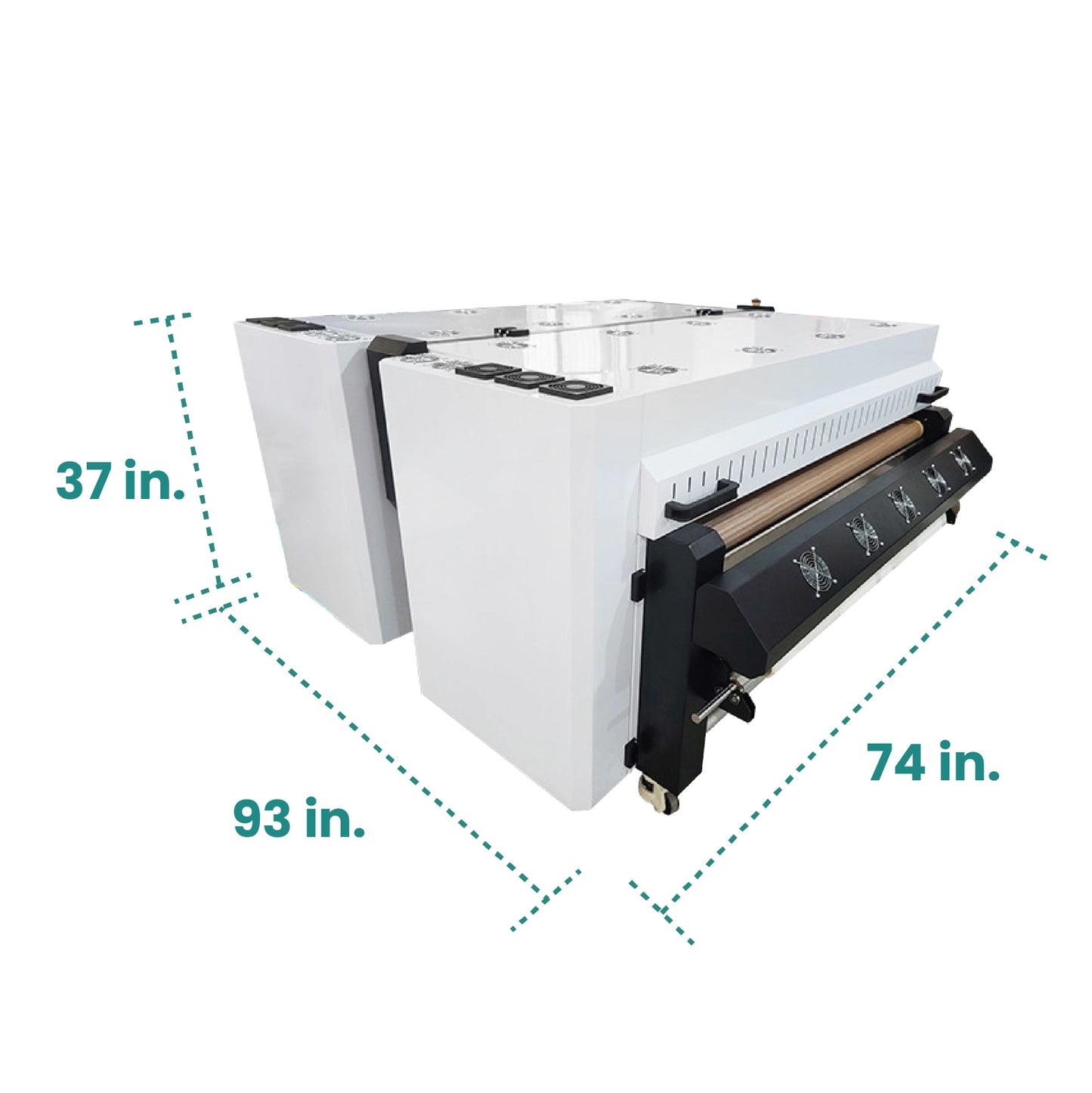

Machine Size (LxWxH)
93" x 74" x 37"
Packing Size (LxWxH) 98" x 78.5" x 40.25"
Configuration With double All-in-one smoke purifier



WARNING

  • Caution: When handling DTF Hot Melt Powder, do not ingest or inhale powder. Harmful if swallowed. Skin irritations may occur. Avoid contact with skin and eyes. If contact with eyes, rinse with large amounts of water. Wear protective clothing, gear, mask and gloves when handling powder. If allergic reaction persists or accidentally ingested, seek medical help immediately.
