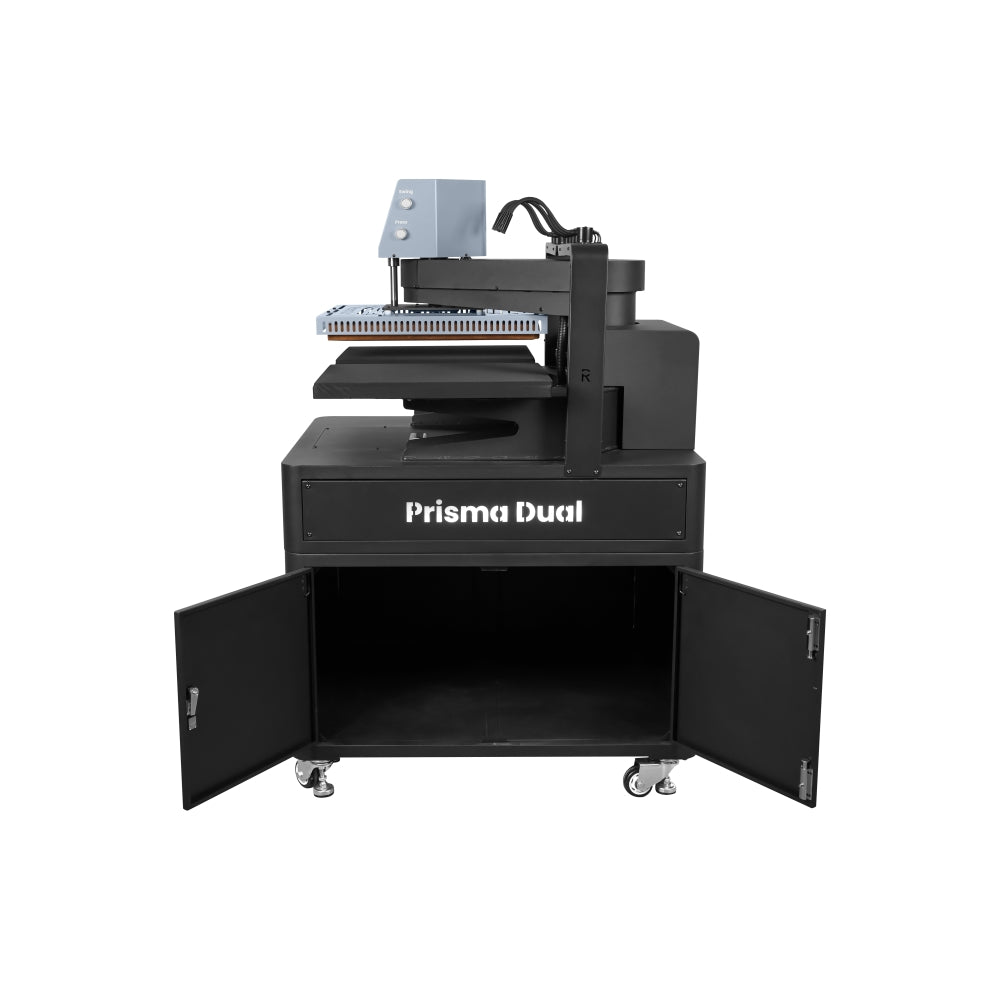

Prisma Dual Heat Press

The Prisma Dual is a dual-platen heat press designed to increase production efficiency without increasing floor space. By allowing one platen to be loaded while the other presses, the Prisma Dual keeps operators moving and minimizes downtime—making it an ideal solution for growing apparel production environments.

Built for consistency, safety, and versatility, the Prisma Dual supports a wide range of transfer applications while maintaining even pressure and repeatable results across both platens.

Double the Efficiency

With two independent platens, the Prisma Dual allows operators to maintain a continuous workflow—load one side while the other presses. Auto and semi-automatic operating cycles, combined with programmable presets, help ensure consistent results across jobs while reducing operator fatigue.

Safety-focused features such as a guard fence and two-hand start system help protect operators during operation, while even pressure across both platens delivers clean, professional results on every press.

Compact, Versatile, and Production-Ready

Designed with space efficiency in mind, the Prisma Dual features a compact footprint that fits through standard doorways, making it suitable for tight shop layouts or mobile setups. Its low power consumption eliminates the need for special electrical installation, simplifying deployment in a wide range of environments.

Interchangeable RAMLOCK platens allow quick adaptation for different garments and applications, including DTF, DTG, sublimation, vinyl, and specialty transfers. Backed by lifetime DTF Station technical support, the Prisma Dual is built for reliable, long-term production use.

Key Features:

• Dual-platen design allows loading on one side while the other presses

• Auto and semi-automatic cycles with presets for consistent operation

• Guard fence and two-hand start for enhanced operator safety

• Even pressure across platens for clean, consistent transfers

• Compact footprint fits through standard doorways

• Low power consumption with no special electrical setup required

• Interchangeable RAMLOCK platens for versatile job setups

• Backed by lifetime DTF Station tech support

What’s Included:

• Prisma Dual Heat Press

• Air compressor

Specifications:

Platen Size: 16” × 20”

Max Temperature: 430°F / 220°C

Dimensions: 38”W × 39”D × 57”H

Weight: 455 lbs

Power Requirements: 1830W / 110V / 16.6A
