DTF Station

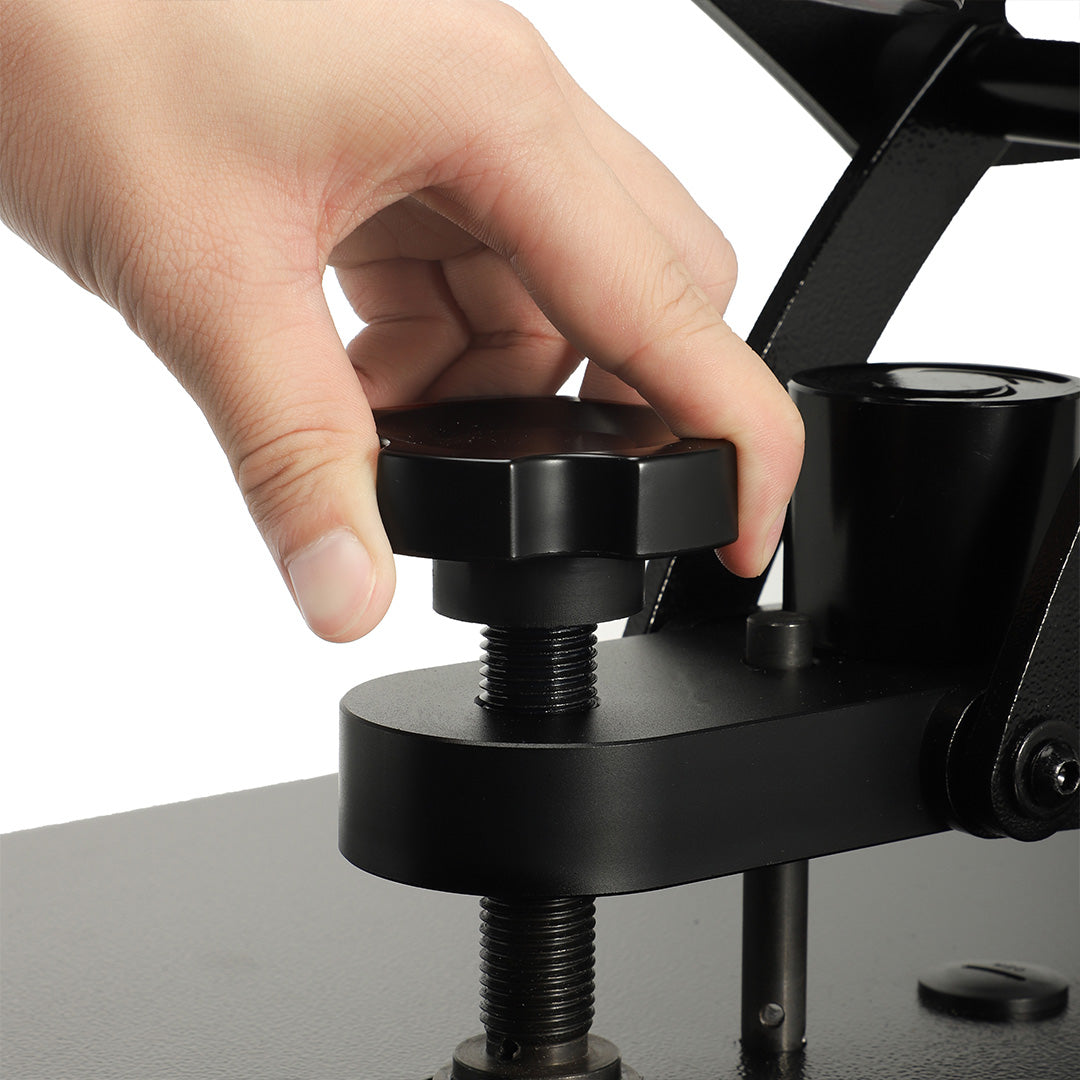

Prisma Auto Heat Press

Prisma Auto Heat Press

Prisma Auto Heat Press Operation Manual

Prisma Auto Heat Press is the most popular model among our Prisma Family, due not only to its appearance, but also its usefulness to any DTF pipeline.

With the Auto-open with slider, pressure sensor, RAMLOCK & RAMSPIN systems, this heat press will be an added asset to your operation.

Optional Platen Sets

Features:

  • RAMSPIN System: With self-developed "RAMSPIN" quick-change system, customers can switch between auto-open control and manual control.
  • RAMLOCK Quick Change System: With this patent system, customer can change multiple lower platens with different sizes easily.
  • Dressable Lower Platen: The special laser cut base allows users to dress garments over the lower platen without stretching them out. Simply load the shirt onto the platen and feed the bottom of the garment through the clearance underneath the lower platen.
  • Slider-out Lower Platen: With slide-out lower platen, customers could put or dress garments freely without worrying about burning hands by upper heat platen during this process.
  • Interchangeable Control Box: With quality aviation connector, the control box can be taken off and put on easily. This helps machines maintenance.
  • Heat Platen: Superior evenness and speed of heating

Specifications:

Platen Size:

16"x20"

Power(120volt)

1800W/16.4Amps

Pressure Display

Yes

Auto-open/Manual

Optional

Slide-out Lower Platen

Yes

Temperature Range:

Max.221℃/430℉

Heating Up Time

356/20 minutes

Time Range:

0~999S

Way to Change Lower platen

“Ramlock” quick change system

Machine Size(While Open):

29.5" x 16.9" x 39.4"

Packing Size:

32.2" x 19.2 x 19.2"

Packing Weight:

110 lbs

Certificate:

CE,FCC
