DTF Station

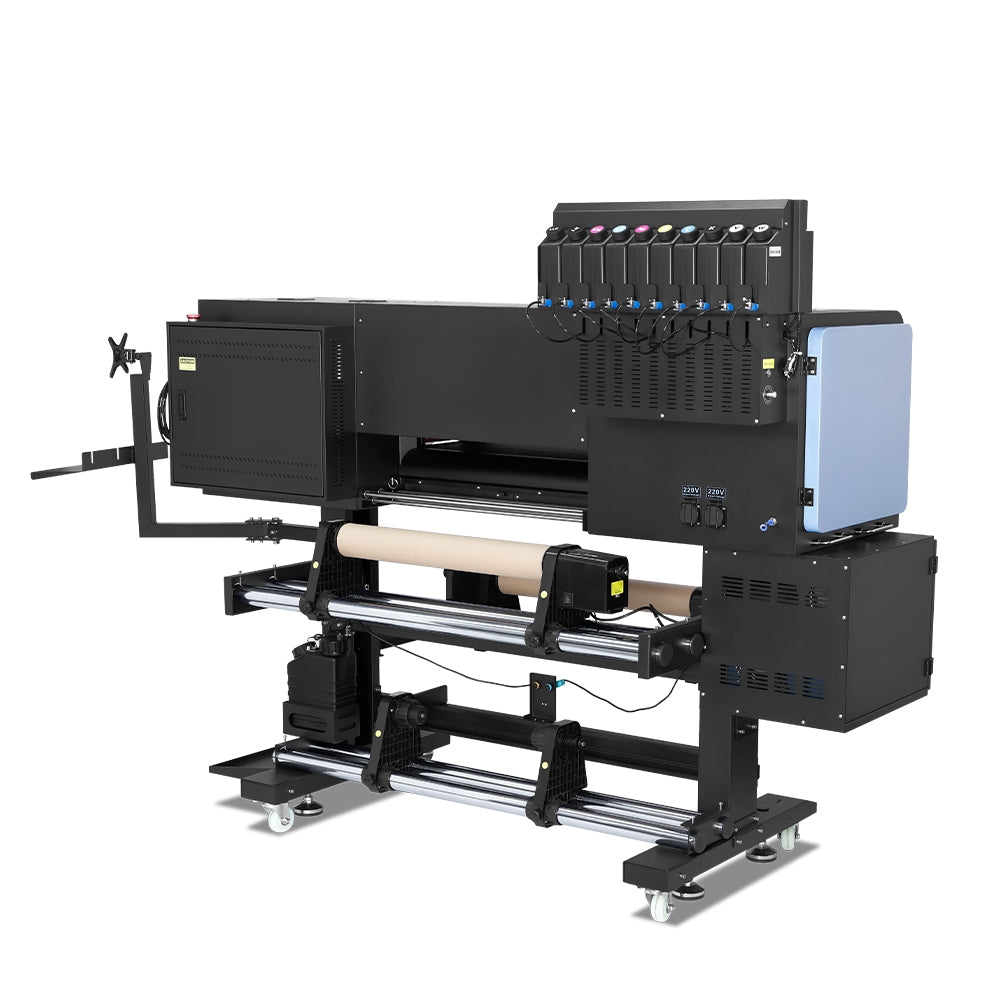

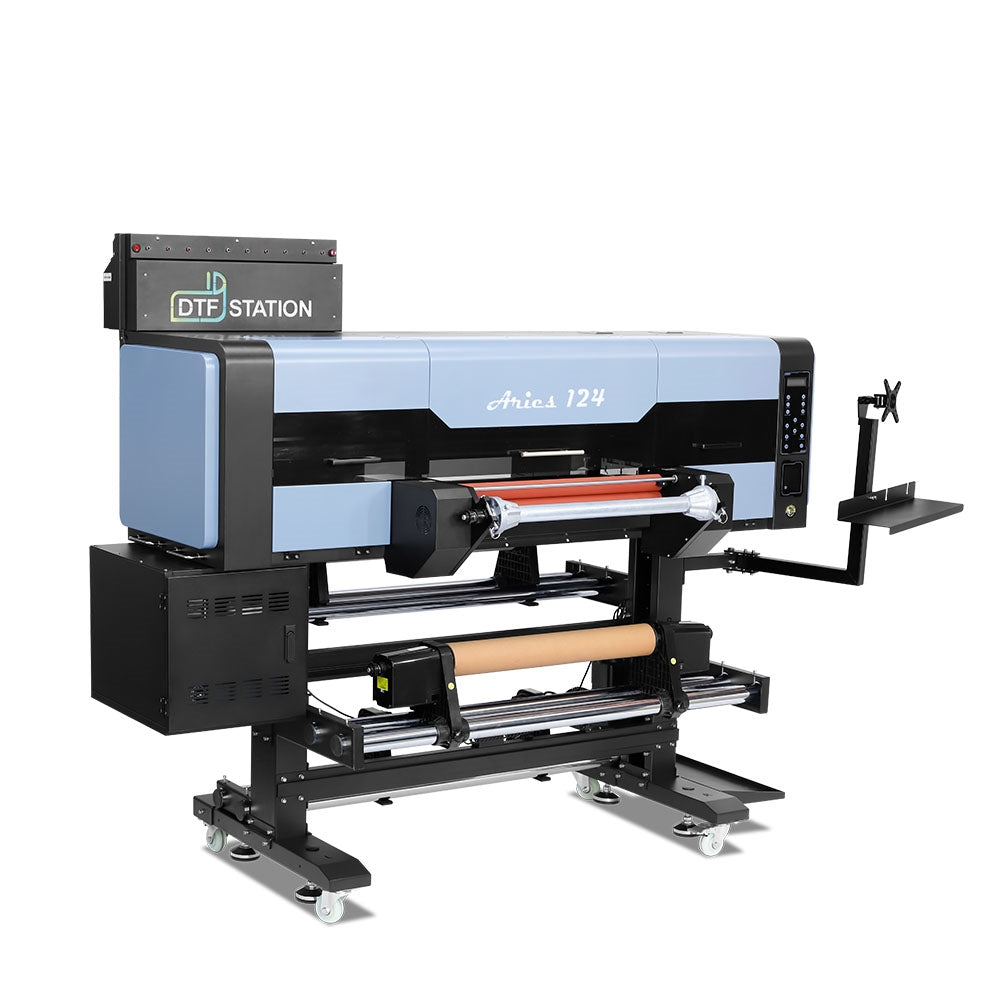

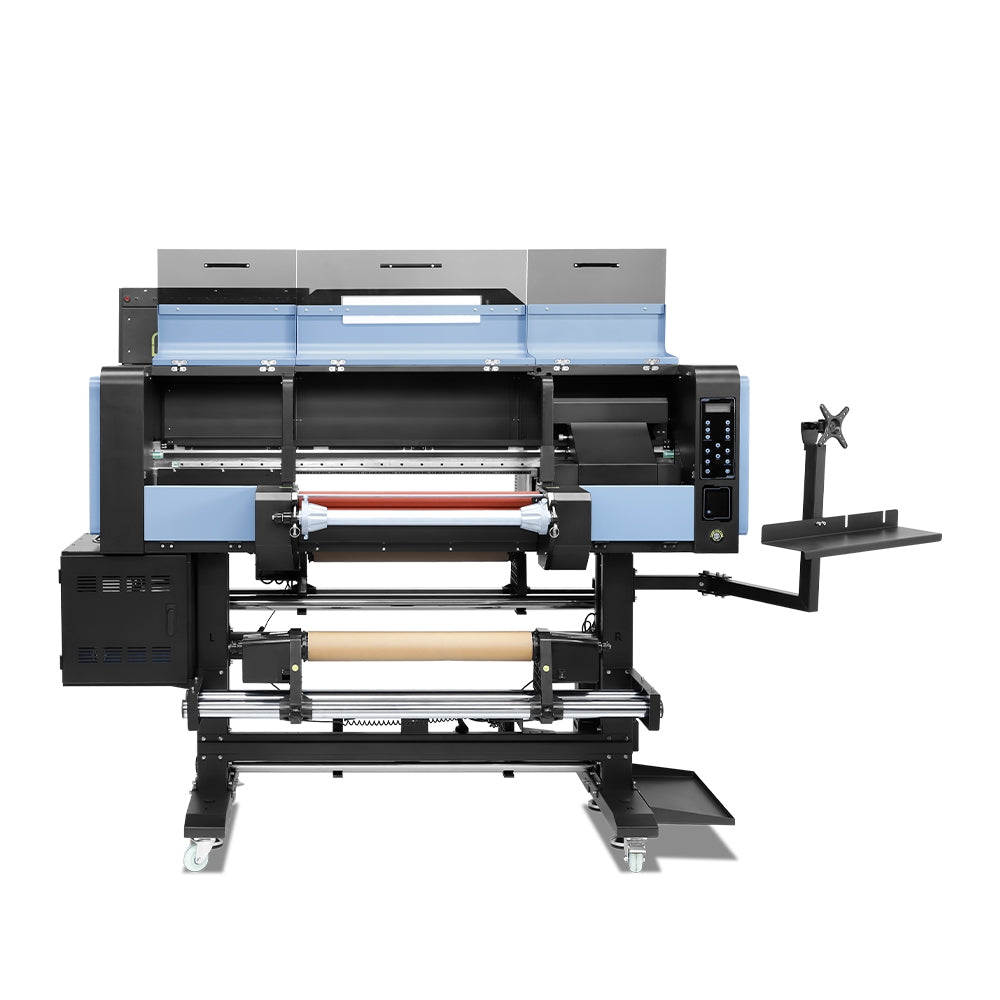

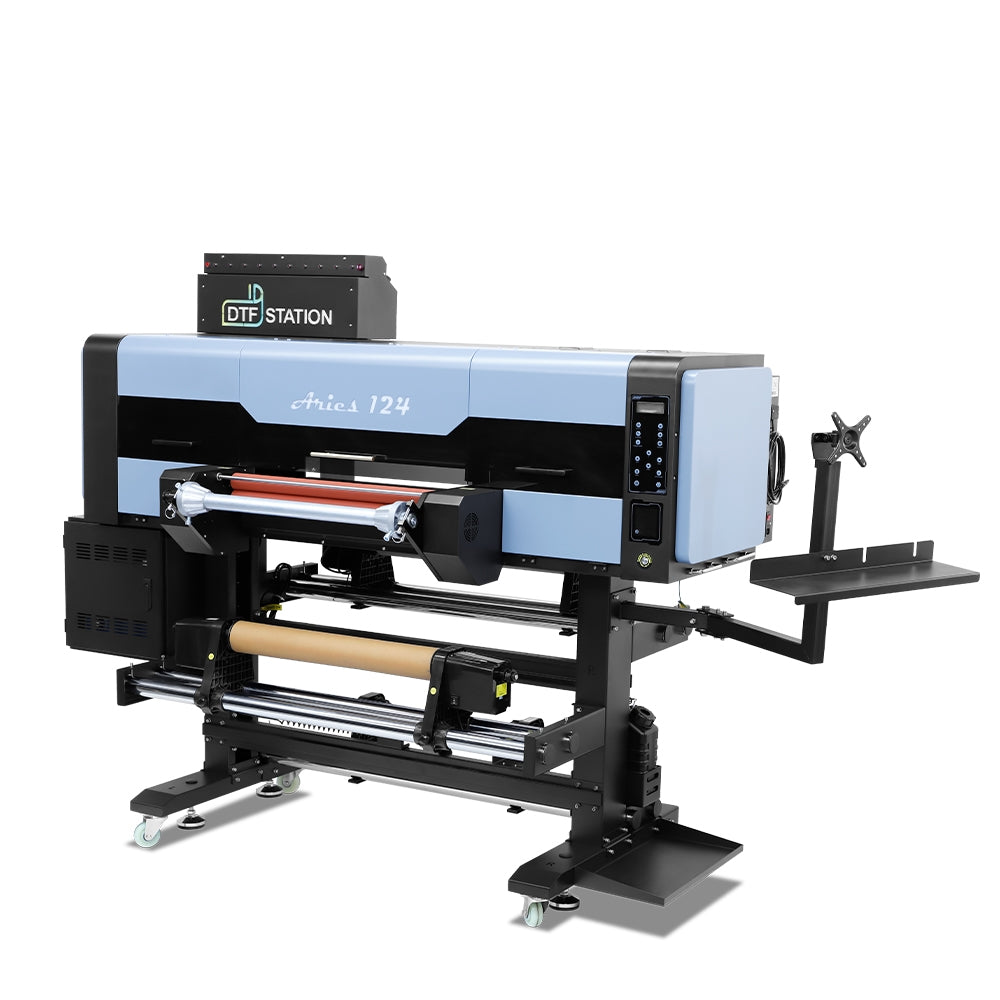

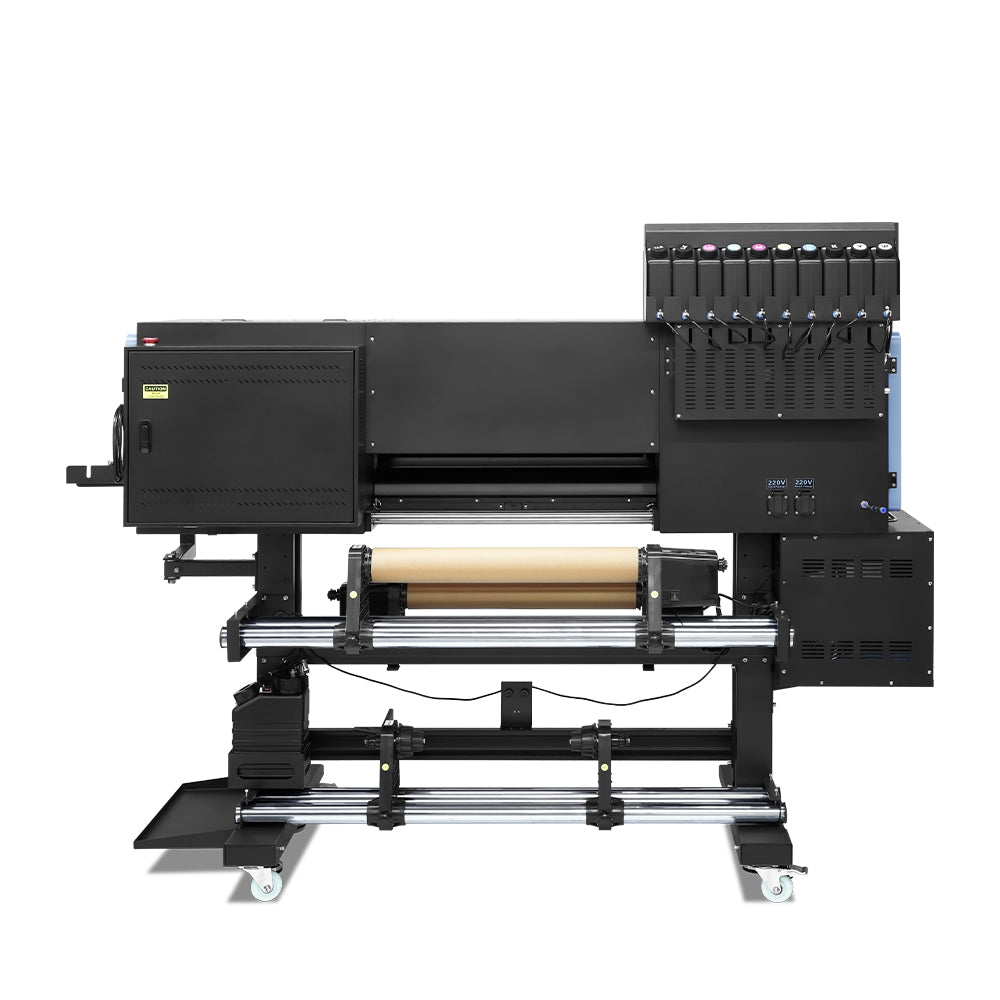

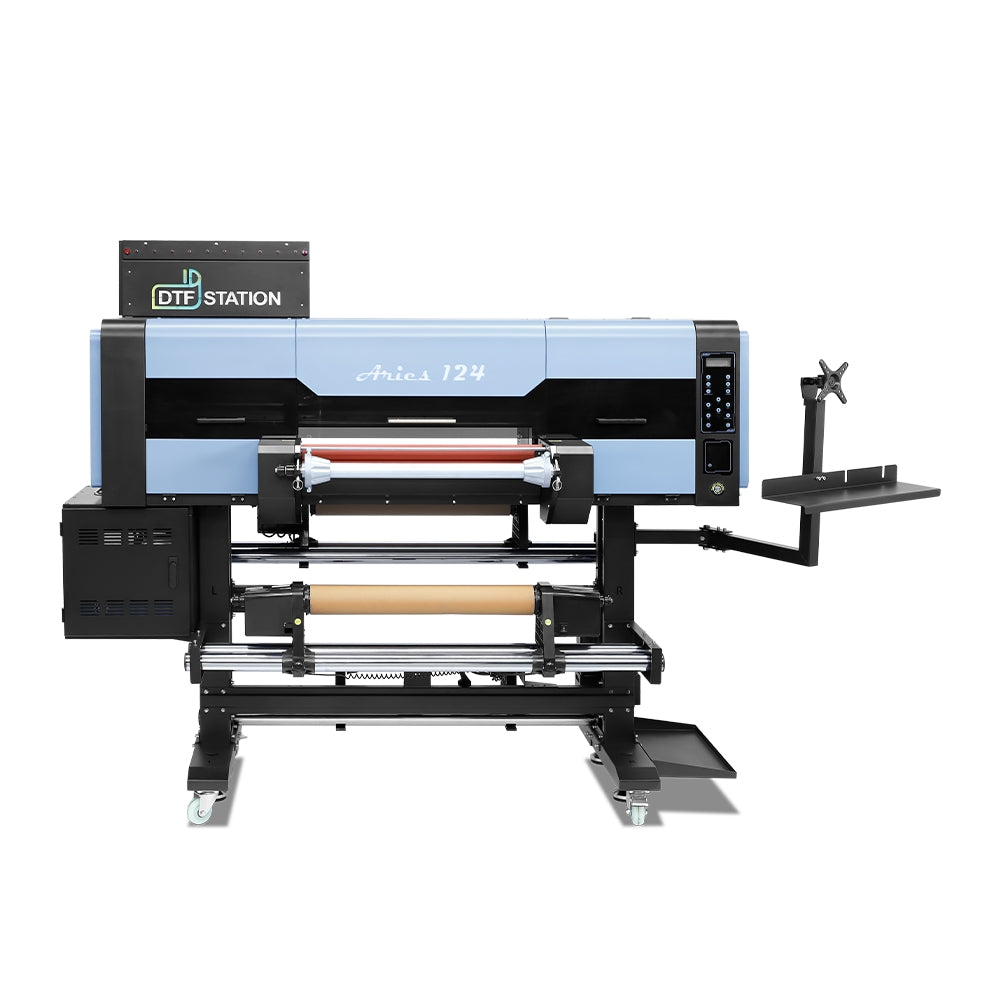

DTF Station Aries 124 UV DTF Printer

DTF Station Aries 124 UV DTF Printer

Air Compressor

Note: Air Compressor required for cooling systemAries 124 units are made to order with an estimated 5-8 week lead time (all lead times are subject to change).

Discover the Aries 124, the ultimate 2-in-1 printing and laminating solution. With impressive speeds and advanced maintenance features like the White Ink Management System and automatic cleaning, this all-in-one printer eliminates the need for additional lamination machines and allows you to create ready-to-use stickers effortlessly. Experience seamless media management with automated pressure adjustments, plus easy, intuitive access for any needed repairs.

Features

  • Speed: 25-60 sq. ft./hour (depending on resolution)

  • Advanced Sensors:

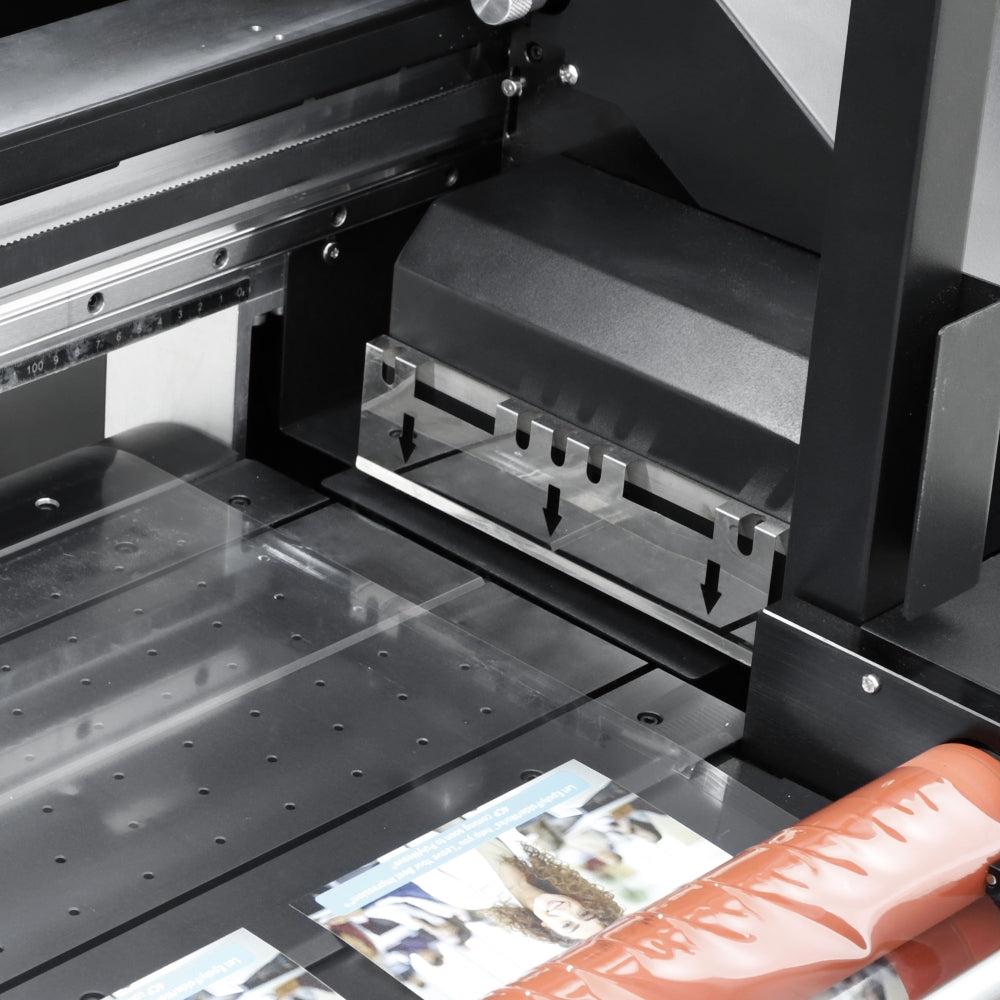

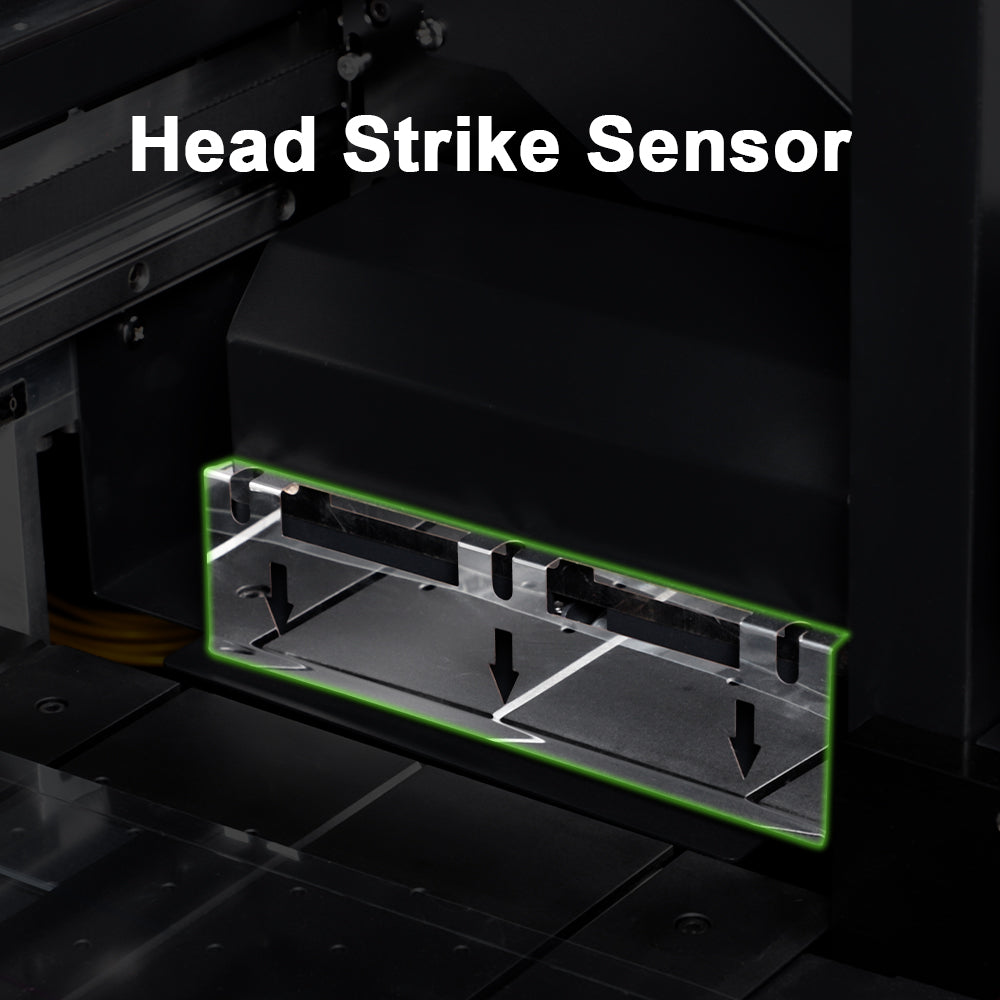

    • Head Strike Sensor: helps prevent damage to printhead

    • Auto Ink Alert System: informs user when ink is running low

    • Automatic Film Sensor: if film runs out/is not detected, stops printing

  • Advanced  Maintenance Features:

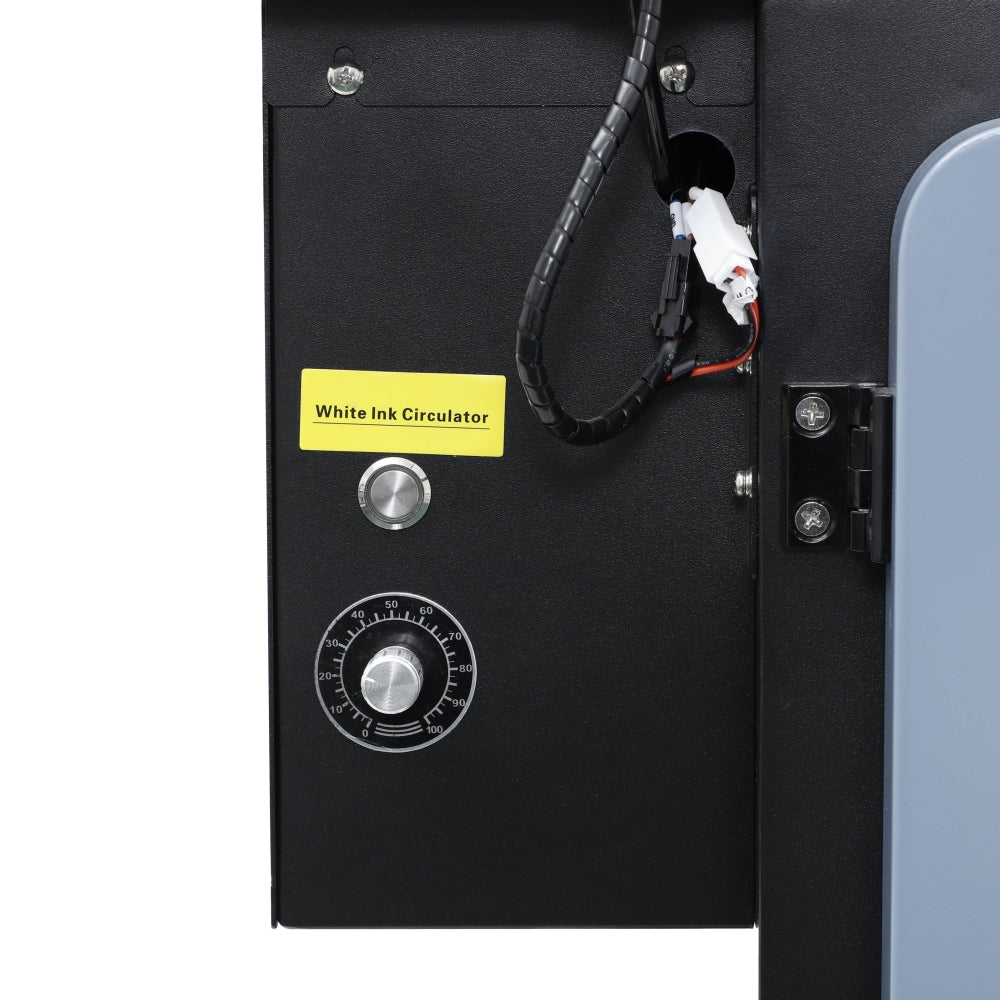

    • White Ink Management System (WIMS): timed white ink stirring system to circulate and maintain white ink inside printer

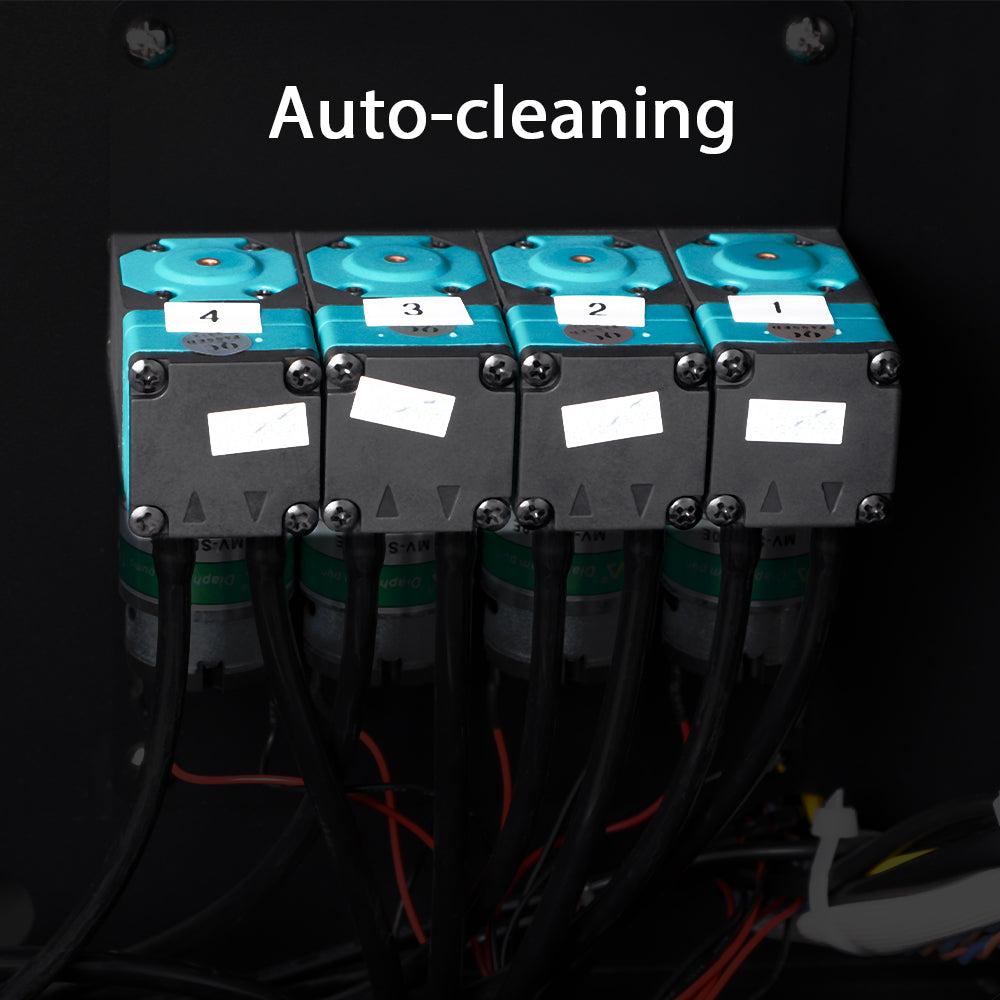

    • Passive Auto-Cleaning: when printer is left on, it will automatically maintain and clean printhead every 4 hours

    • Active Auto-Cleaning: during set intervals (even during printing), printer can stop to clean printhead

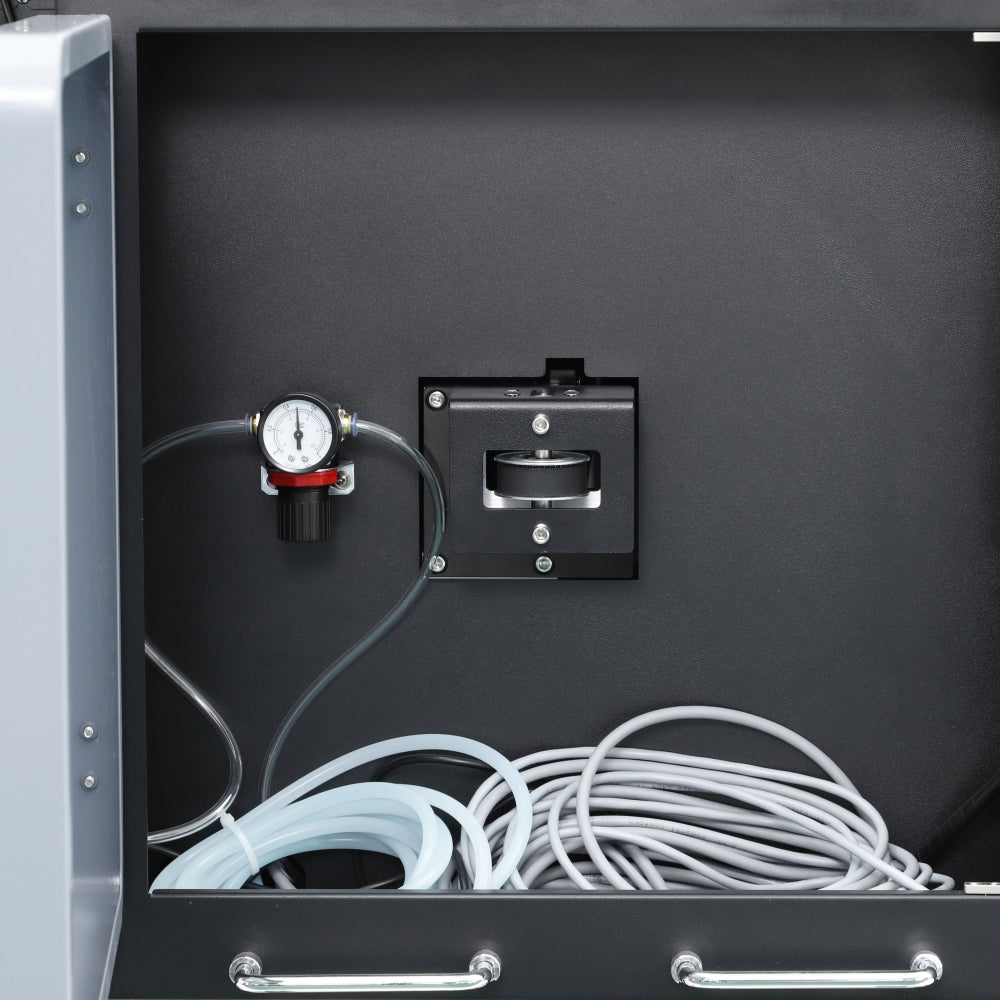

  • Pneumatic release film feeding

Benefits

  • Printing & Laminating 2-in-1: Save time and money with ready-to-use stickers with little ha. No additional lamination machine or process required!

  • Advanced maintenance features: The suite of maintenance features on the Aries 124 ensures less downtime for non-stop production and a longer lifespan for your investment

  • Seamless Media Management: Eliminate the hassle of manual laminator pressure adjustments with our automated system

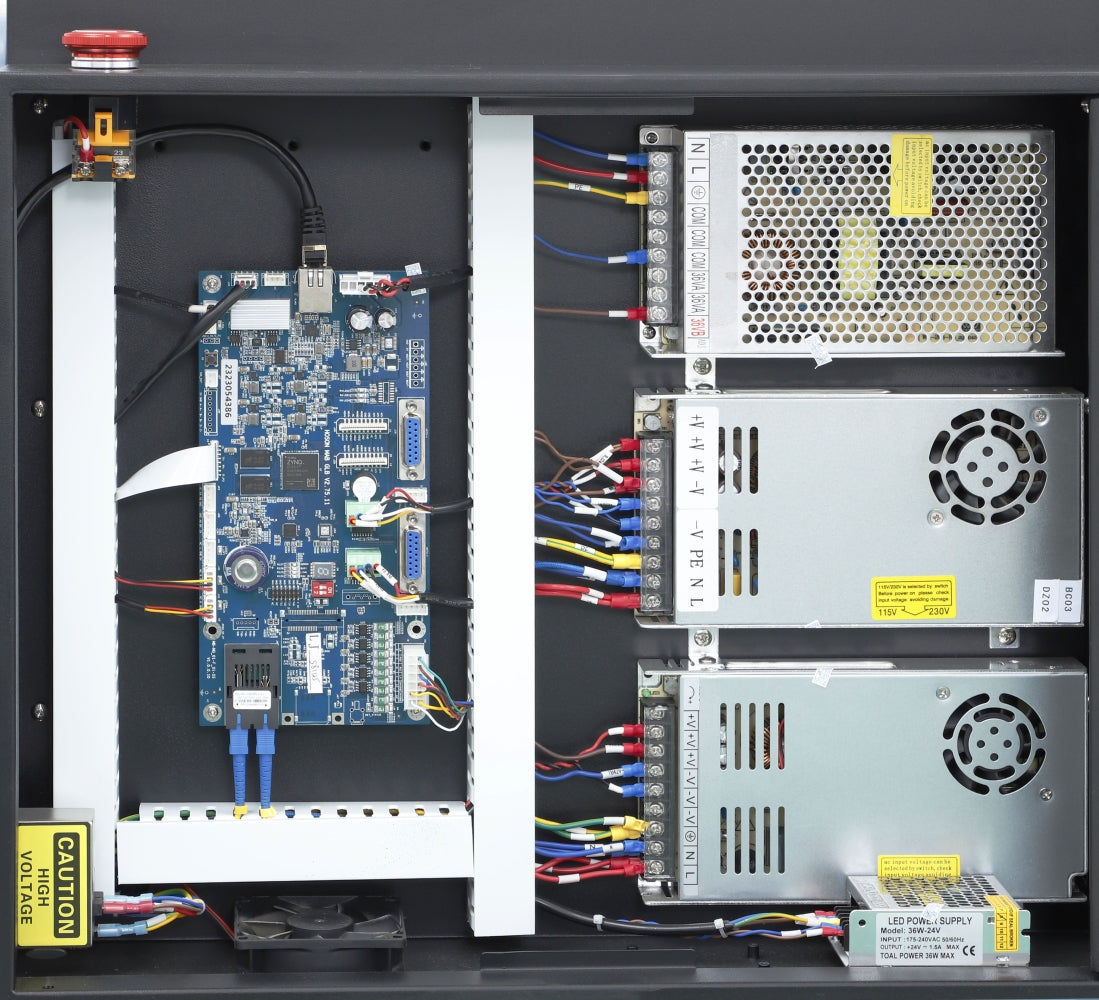

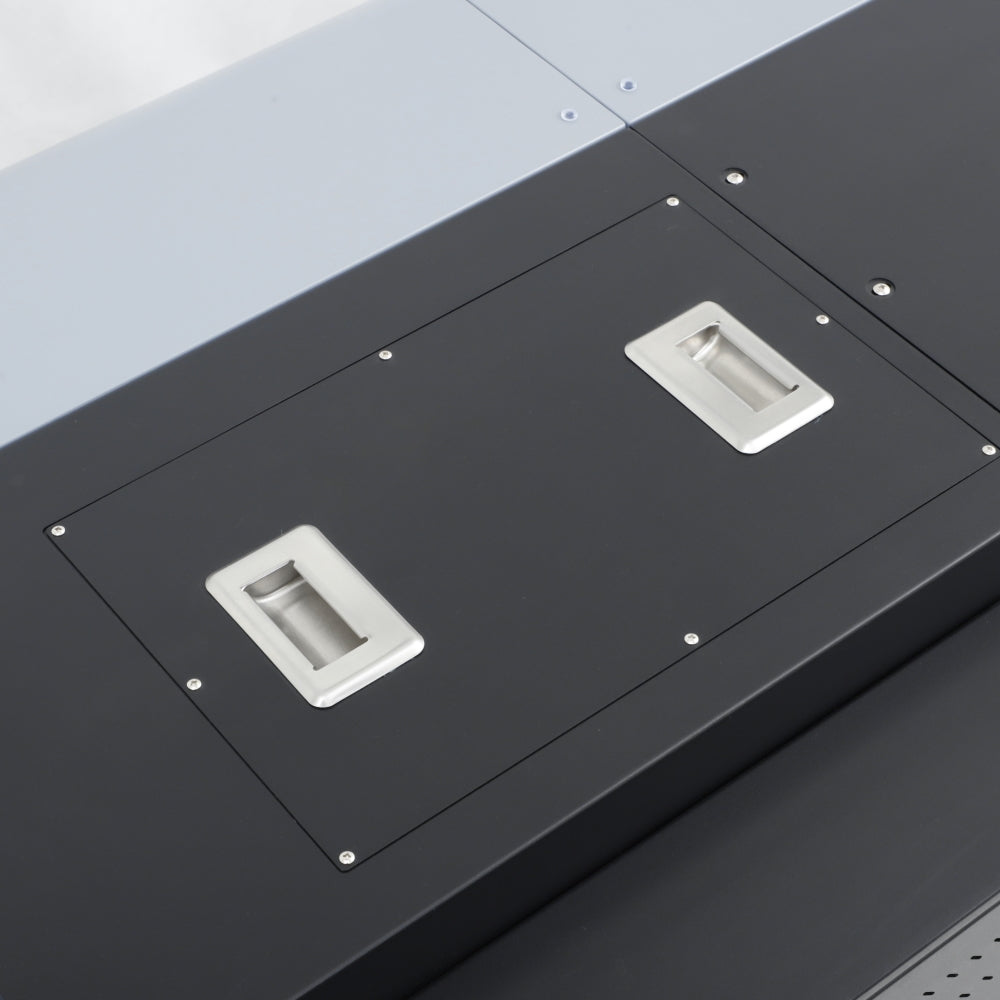

  • Easy access/repair: intuitive, labeled board design and connections for easy access and repair

Specifications

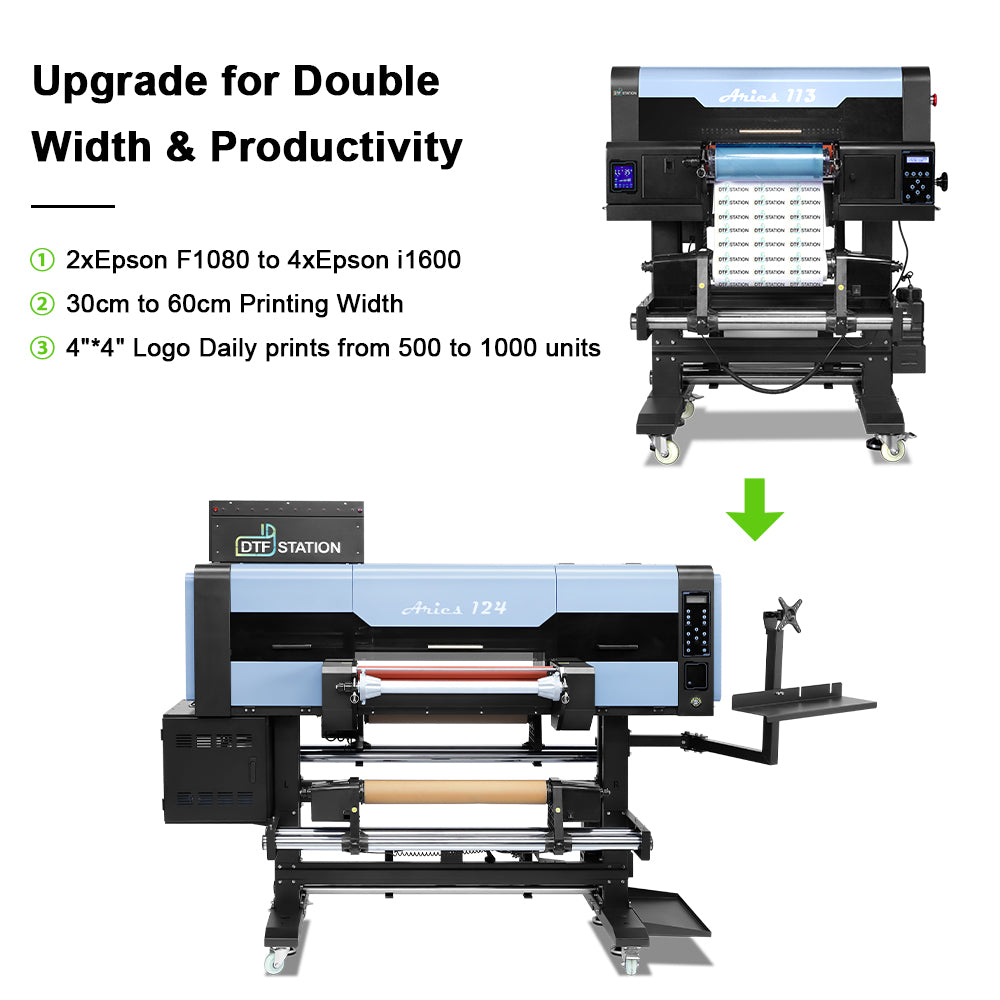

  • Print Head: 4x Epson i1600-U1

  • Software: DigiRIP Pro RIP Software + Hoson

  • Max Film Width: 24” (61 cm)

  • Max Print Width: 23.62” (60 cm)

  • Printing Speed:

    • 60 sq. ft./hour (Resolution 720*1200)

    • 25 sq. ft./hour (Resolution 720*1800)

  • Daily Output (based on 4”x4” design size, 8 hours per day): 1000-1500 Pcs

  • Weight (lb):

    • Product: 551.15 lb

    • Packaging: 716.50 lb

  • Dimensions (WxDxH):

    • Product: 73.81" x 37.40" x 62.76"

    • Packaging: 78.74" x 44.88" x 33.31"

  • Power Requirements: 1900W (800W from cooling system), 110V, 17.27A

What’s Included

  • Printer

  • Starter Supply Bundle (Film, Ink, and Cleaning Supplies)

    • Color Prime UV DTF A Film (24" x 109yd) (x1)

    • Color Prime UV DTF B Film (24" x 109yd) (x1)

    • Color Prime UV DTF Ink 1kg - CMYK+LC+LM+LK+LLK (x1 each)

    • Color Prime UV DTF Ink 1kg - White & Varnish (x2 each)

    • Color Prime UV DTF Cleaning Solution 1kg

    • Color Prime UV DTF Maintenance Solution 1kg

    • Cleaning Supplies - 7" Polyester Swabs (50 pack), Lintless Wipes 4"x4" (30 pack), Isopropyl Alcohol 16oz

  • On-site Training

  • DigiRIP RIP Pro Software - including fully functional Software Trial Version (15 Day Free Trial)

  • Conditional 6 Month Warranty on up to 2 Printheads & Limited 1 Year Warranty on Non-Consumable Parts*

    • *Use of non-DTF Station ink, film, powder, or other supplies will void warranty coverage. Must complete on-site training. Other terms & Conditions apply. Visit link for full details.

  • Parts & Accessories

    • Air Compressor Tube

    • Waterproof Tape

    • Wiper Blade

    • Ink Tube Connector

    • Y Shape Connector

    • Ink Tube 1m

    • Straight Connector

    • Ink Reservoir

    • Damper

    • Pin

    • M3x8 Screw

    • M4x6 Screw

    • M3x10 Screw

    • M5x10 Screw

    • M6x16 Screw

    • Magnet

    • USB

    • Key

    • Protective Gloves

    • 30ml Syringe

    • Printhead Cable

    • Power Cord

Applications

  • Signage and Banners: Various sign materials, such as PVC, acrylic, foam board, and corrugated plastic (suitable for short-term outdoor and indoor signage)

  • Promotional Items: personalize and brand promotional products like pens, keychains, USB drives, and phone cases.

  • Packaging: materials like cartons, boxes, and labels, offering customization and branding options for businesses.

  • Labels and Stickers: durable labels and stickers for product labeling, barcoding, or branding purposes

  • Glass and Ceramics: decorative glassware, drinkware, ceramic tiles, and more.

  • Wood and Plywood: wooden surfaces, creating custom furniture, signage, and art on wood.

  • Metal: aluminum, brass, and stainless steel, and personalized metal products.

  • Leather and Leather Products: customized leather goods, including wallets, bags, and footwear.

  • 3D Objects: prototypes and custom packaging for unique-shaped items.

  • Flooring and Tiles: custom designs tiles and other flooring materials.

Compatible With

  • DigiRIP Pro RIP Software

  • Color Prime UV DTF Ink, Film, and Supplies
